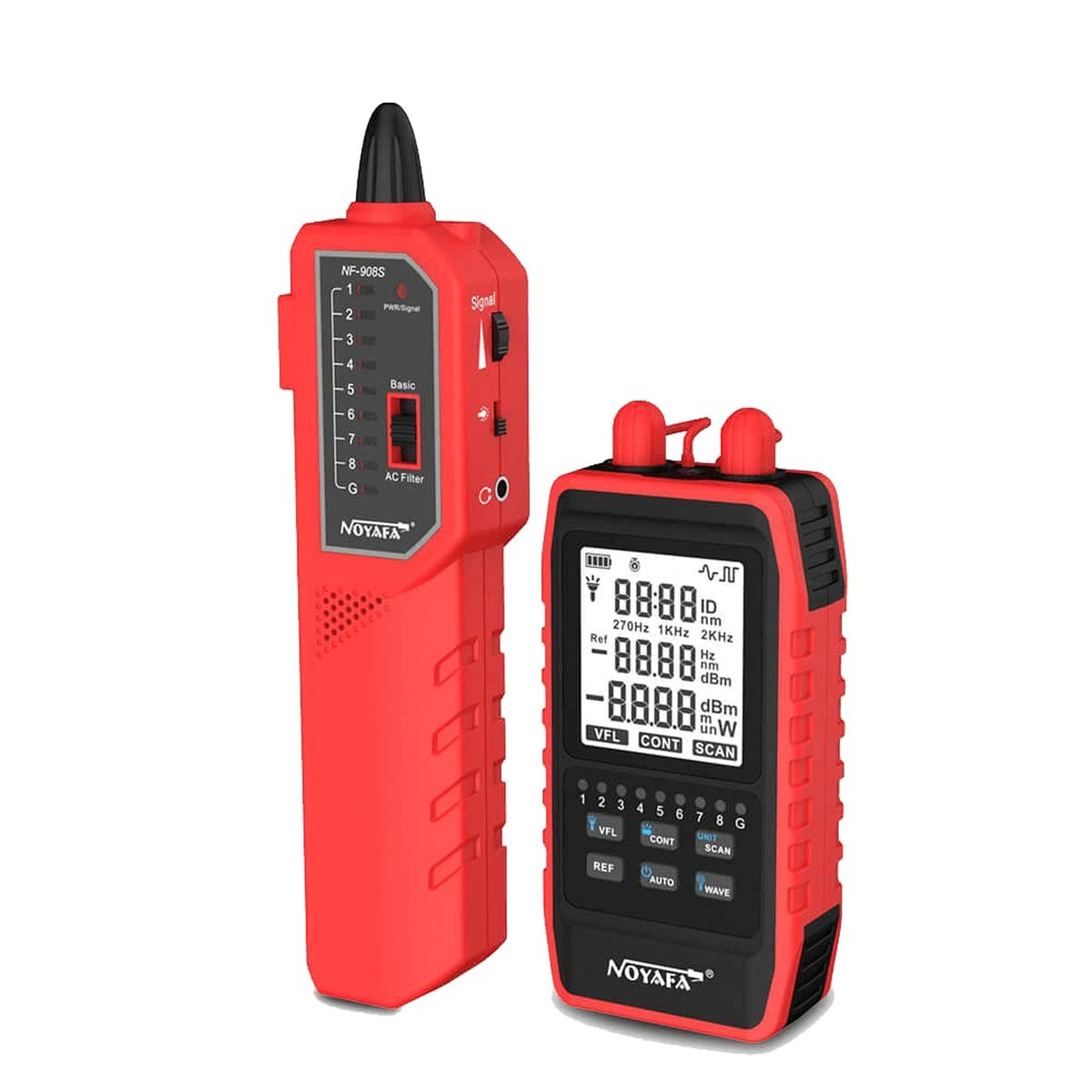

NOYAFA NF-908S Optical Power Meter + VFL + Wire Tracker – 6 Wavelengths, RJ45 Scan

The NOYAFA NF-908S is a compact 4-in-1 fibre and network kit: optical power meter, visual fault locator (VFL), RJ45 wiremap/continuity and a detachable wire tracker. Measure six common wavelengths on an English LCD, check fibre breaks with the red VFL, then map or tone RJ45 runs with the built-in SCAN/CONT remote—without carrying separate meters.

Press WAVE to switch 850 / 980 / 1310 / 1490 / 1550 / 1625 nm and read optical power in the −60~8 dBm range on FC, SC or ST adapters. The matching tracker wand (9 V, often not included) supports cable tracing and SCAN; the OPM side runs from a rechargeable 3.7 V / 700 mAh pack with USB charge and a top LED for dark racks.

Key features

• 6-wavelength OPM: 850 / 980 / 1310 / 1490 / 1550 / 1625 nm, −60~8 dBm (listing)
• VFL red light for fibre break / bend checks
• RJ45 toolkit: wiremap, SCAN and CONT with detachable remote adapter
• Wire tracker included on NF-908S (not the base NF-908 / NF-908L without tracker)
• FC / SC / ST optical interface compatibility
• English UI (nm / dBm · VFL / CONT / SCAN) + LED work light
• Rechargeable OPM: 3.7 V / 700 mAh Li-ion, USB charge; tracker uses 9 V 6F22 (often not included)

Specifications

• Model: NF-908S
• Brand: NOYAFA
• Wavelengths: 850 / 980 / 1310 / 1490 / 1550 / 1625 nm
• Power range: −60 ~ 8 dBm
• Optical ports: FC / SC / ST
• Cable functions: RJ45 wiremap / SCAN / CONT + wire tracker
• OPM power: 3.7 V / 700 mAh Li-ion (USB)
• Tracker power: 9 V 6F22 (often not included)
• Ship weight: Approx. 0.32 kg

Note: This listing is the NOYAFA NF-908S only (SKU EKO-NF-908S). It is not the NF-911C, base NF-908, NF-908L (no wire tracker / SCAN), or any in-store cable-tester siblings (e.g. NF-8209, NF-838, NF-8509, NF-8601). Do not stare into the VFL or live fibre; follow laser/fibre eye-safety rules and the manual.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

Is this the NF-911C / base NF-908 / NF-908L?

No. This SKU is the NF-908S 4-in-1 with wire tracker and SCAN only (EKO-NF-908S). NF-911C is a different Amz size variant; base NF-908 / NF-908L lack the tracker/SCAN package—do not mix them.

Is this the same as the NF-8209 / NF-838 / NF-8509 already in the shop?

No. Those are network cable testers / multimeters without this OPM+VFL six-wavelength stack. The NF-908S is a separate optical + RJ45 tracker kit—do not merge pages.

What wavelengths and power range?

Six wavelengths: 850 / 980 / 1310 / 1490 / 1550 / 1625 nm. Measuring range about −60~8 dBm (listing), with FC / SC / ST adapters.

Does it include a wire tracker and RJ45 scan?

Yes. The NF-908S kit includes the detachable wire tracker / RJ45 remote for SCAN, CONT and wiremap. Tracker power is 9 V 6F22 (often not included).
