Wintact WT65 Mini Optical Power Meter, -70 to +6 dBm, FC/SC/ST
$54.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

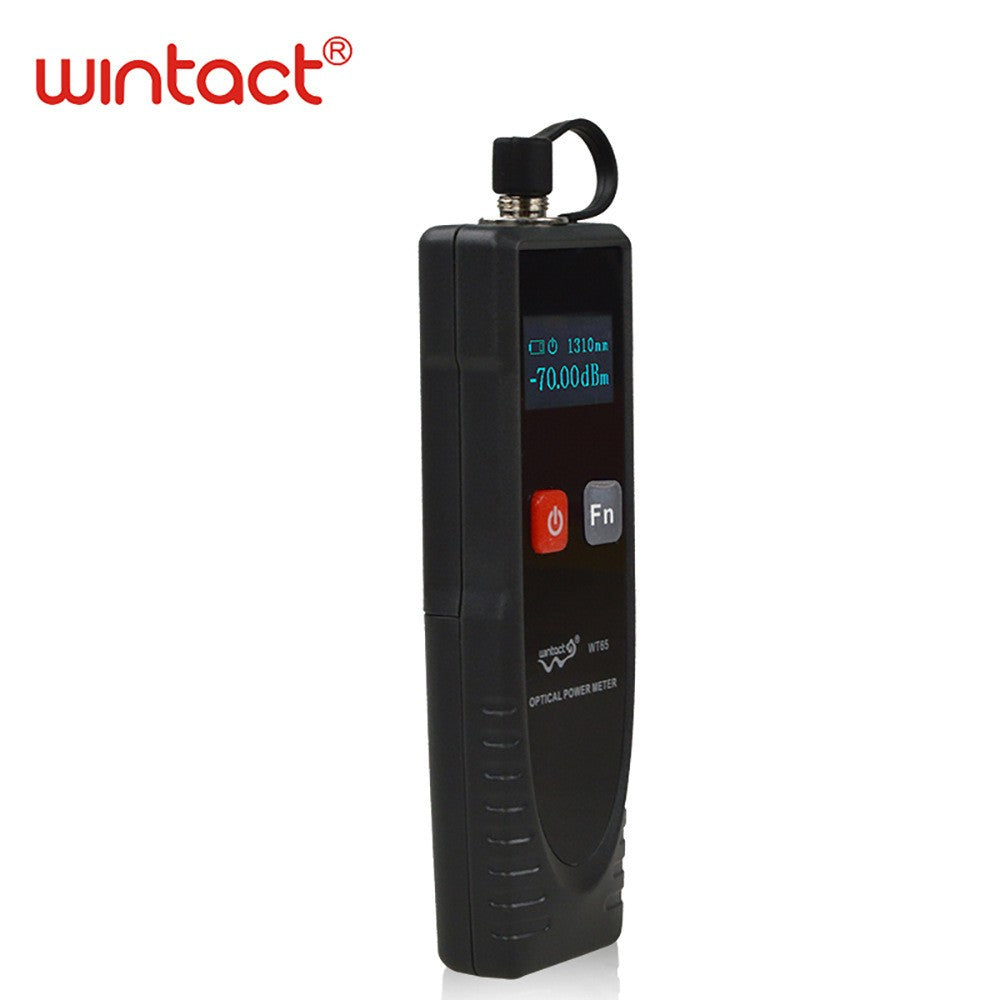

The Wintact WT65 is a compact handheld optical power meter for fibre-optic installation and maintenance. It measures from -70 to +6 dBm across six standard wavelengths and reads absolute and relative power.
Key Specifications
- Model: WT65
- Measurement range: -70 to +6 dBm
- Wavelengths: 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
- Resolution: 0.05
- Accuracy: ±2 dB at ≥ -48 dBm; ±3.5 dB below -48 dBm
- Connector: Universal FC / SC / ST
- Display: Backlit, battery-level indicator
- Auto power-off: 10 minutes
- Power: 2 × 1.5 V AAA batteries
Key Features
- Absolute (dBm) and relative (dB) power measurement
- Universal FC/SC/ST optical interface
- Backlit display with battery indicator
- Dust cap on the optical port
- Pocket-sized, low power draw
Ideal For
- Fibre network installation
- Link and cable maintenance
- Telecoms and data network troubleshooting
In the Box
- WT65 optical power meter
- 2 × AAA batteries
- User manual
Important Notes
- A laser light source is not included
- Never look into an active fibre or laser source
Delivery
- Free UK delivery
- Dispatched within 1–2 working days
- Delivered in 5–7 working days
- All prices include VAT
Technical specifications
| Specification | Value |
| Model | WT65 |
| Measurement range | -70 to +6 dBm |
| Wavelengths | 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm |
| Resolution | 0.05 |
| Accuracy | ±2 dB at ≥ -48 dBm; ±3.5 dB below -48 dBm |
| Connector | Universal FC / SC / ST |
| Display | Backlit, battery-level indicator |
| Auto power-off | 10 minutes |
| Power | 2 × 1.5 V AAA batteries |
FAQ
What wavelengths does the WT65 measure?
850, 1300, 1310, 1490, 1550 and 1625 nm.
What is the measurement range?
-70 to +6 dBm.
Which connectors does it accept?
FC, SC and ST through its universal interface.
Does it include a light source?
No. The WT65 is a power meter only; use it with a separate laser source.
Is delivery free?
Yes. UK delivery is free, dispatched in 1–2 working days.
