NOYAFA NF-IPC715 5.4″ CCTV IPC Tester – 8MP AHD/CVI/TVI, 4K HDMI, PoE & ONVIF

The NOYAFA NF-IPC715 is a compact 5.4″ IPS touch CCTV / IPC tester for installers who need one English-UI handset to commission IP, HD coax and analog cameras on site. View 4K H.265/H.264 streams, auto-detect 8MP AHD/CVI/TVI, feed HDMI or VGA monitors into the panel, power cameras with 48 V PoE or DC 12 V 3 A, then run ONVIF / IP Discovery and UTP–TDR cable checks without swapping tools.

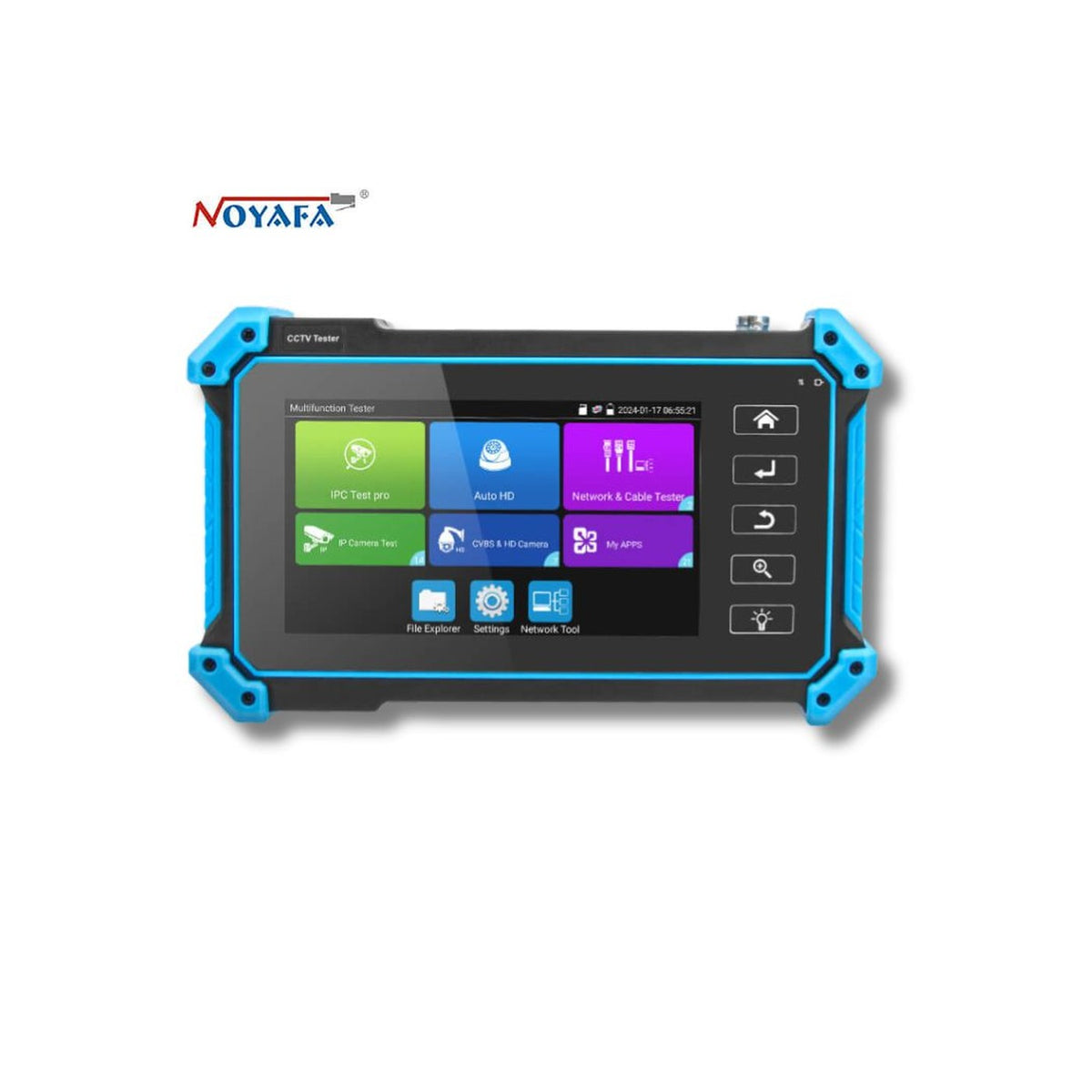

The Multifunction Tester home screen (EN) exposes IPC Test Pro, Auto HD, Network & Cable Tester and related apps. Use Hikvision / Dahua batch tools to activate cameras, change IP/password and open WDR, or generate ONVIF test reports. Built-in 150M Wi-Fi covers wireless camera previews; network helpers include ping, port flash, DHCP and traceroute.

Key features

• 5.4″ IPS touch at 1920×1080 with English UI (IPC Test Pro · Auto HD · Network & Cable)
• IP camera toolkit: 4K H.265/H.264, IP Discovery, Quick ONVIF, RTSP, multi-preview (up to 32 ch listing)
• 8MP HD coax: AHD / CVI / TVI + Auto HD type/resolution detect, UTC/OSD, snapshot & record
• HDMI IN up to 4K 30FPS and VGA IN (up to 2048×1152 @60FPS) for monitor/XVR checks
• Camera power: 48 V PoE (max 25.5 W) + DC 12 V 3 A temporary supply
• Cable & network: UTP near/mid/far fault find, RJ45 TDR quality/length (~180 m), ping / port flash / DHCP
• 150M Wi-Fi for wireless camera view; audio input; LED torch; rugged blue bumper shell

Specifications

• Model: NF-IPC715
• Brand: NOYAFA
• Display: 5.4″ IPS capacitive touch, 1920×1080
• IP test: 4K · H.265/H.264 · ONVIF / IP Discovery / IPC test / RTSP
• HD coax: 8MP AHD / CVI / TVI · Auto HD
• CVBS: BNC NTSC/PAL · RS485 PTZ
• HDMI IN: up to 4K 30FPS · VGA IN: up to 2048×1152 @60FPS
• Power out: DC 12 V 3 A · 48 V PoE max 25.5 W
• Cable: UTP fault locate · RJ45 TDR (~180 m report)
• Wi-Fi: 150M built-in
• Size / body weight: 183×110×36.5 mm / ~0.8 kg
• Ship weight (listing): approx. 3.5 kg packed

Note: This listing is the NOYAFA NF-IPC715 only (SKU EKO-NF-IPC715). It is not the IPC-5200, IPC-5200 Plus, IPC-5100, IPC-728, IPC-9800, NF-IPC715SDI, or any “NF-715” marketing shorthand sibling. Confirm PoE/DC compatibility before powering a camera; do not reverse-feed the tester’s DC output into its DC input. Follow the manual and site safety rules.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

Is this the IPC-5200 / IPC-5100 / IPC-728 / IPC-9800?

No. This SKU is the NOYAFA NF-IPC715 5.4″ IPC tester only (EKO-NF-IPC715). Those sibling/clone model numbers are separate products and are not included or merged on this page.

Is this the NF-IPC715SDI (EX-SDI) version?

No. This is the base NF-IPC715 without EX-SDI. The SDI-capable NF-IPC715SDI is a different SKU and is not sold under this listing.

What camera types and resolutions does it support?

IP cameras with 4K H.265/H.264 decode, plus 8MP AHD/CVI/TVI coax via Auto HD, and analog CVBS (NTSC/PAL). HDMI input supports up to 4K 30FPS; VGA input up to about 2048×1152 @60FPS.

Does it output PoE and 12 V to power cameras?

Yes. 48 V PoE output (max 25.5 W) and DC 12 V 3 A temporary camera supply. Confirm the camera supports PoE before enabling PoE out.

Is the on-screen interface in English?

Yes. The unit ships with English UI (Multifunction Tester home: IPC Test Pro, Auto HD, Network & Cable, etc.). Other languages are available in settings per the manufacturer.
