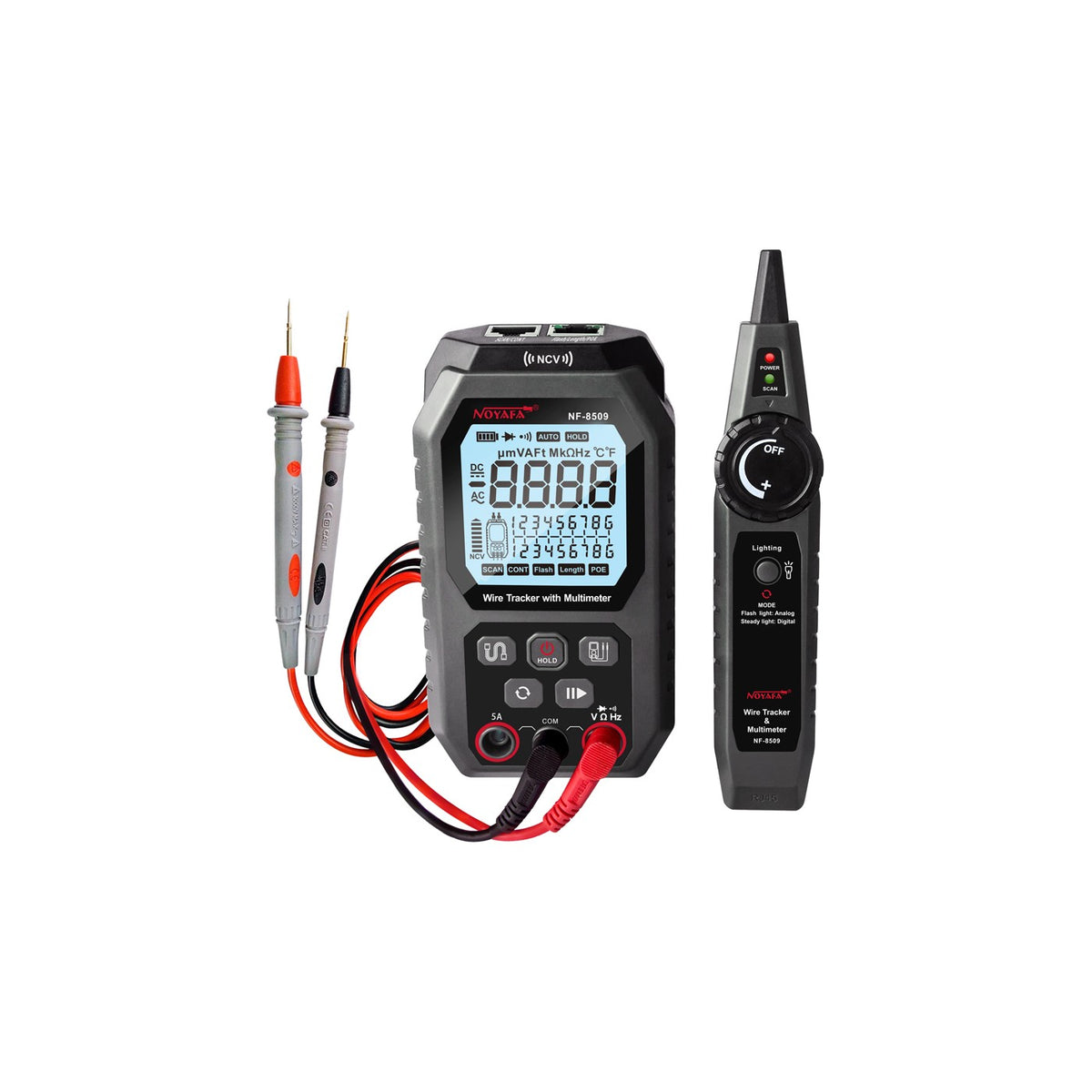

NOYAFA NF-8509 2-in-1 Network Cable Tester + Multimeter – Wiremap, Scan, Length, PoE, NCV

The NOYAFA NF-8509 is a 2-in-1 network cable tester and digital multimeter for installers who need RJ45 wiremap, toning/scan, length, PoE checks and everyday electrical measurements in one English-UI kit. Trace and map Cat5/Cat6 runs, flash the live switch port, then switch to AC/DC voltage, resistance, continuity, diode, NCV and current without carrying a second meter.

The transmitter shows SCAN / CONT / Flash / Length / POE on a backlit LCD and runs from a rechargeable 3.7 V lithium pack (USB-C). The matching receiver wand adds volume/sensitivity, LED light and an earphone jack for noisy racks. Length covers about 5–200 m (±3 m)—this is not the long-range NF-8601 length/PoE platform.

Key features

• RJ45 cable toolkit: wiremap, scan (digital/analog), continuity, length 5–200 m, port flash and PoE (4-/8-core + voltage)
• Port flash to identify 10/100/1000 M switch or router ports
• Digital multimeter: AC/DC voltage (to 610 V), resistance, continuity, diode, NCV (0–4 levels), DC current to 3 A, frequency (manual)
• Backlit LCD with English mode bar (SCAN / CONT / Flash / Length / POE)
• Rechargeable transmitter (3.7 V Li-ion, USB-C) + 9 V receiver wand with LED light and earphone
• Grey-shell kit: transmitter, receiver, test leads and common adapters/pouch (listing)

Specifications

• Model: NF-8509
• Brand: NOYAFA
• Cable tests: RJ45 wiremap / scan / continuity / length / port flash / PoE
• Length range: 5–200 m (±3 m)
• Scan (listing): RJ45 up to ~600 m
• Multimeter: AC/DC V, Ω, continuity, diode, NCV, DC A, frequency
• Transmitter power: 3.7 V / 1,500 mA Li-ion (USB-C)
• Receiver power: DC 9 V (often not included)
• Ship weight: Approx. 0.62 kg

Note: This listing is the NOYAFA NF-8509 only (SKU EKO-NF-8509). It is not the NF-8504, NF-8506, NF-8508, NF-8601, NF-8509S, or any other sibling cable tester. Do not treat it as the store’s NF-8601 length/PoE unit (EKO-NF-8601). Do not connect live mains or circuits beyond the meter’s rated ranges. Follow the manual and local electrical safety rules.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

Is this the NF-8504 / NF-8506 / NF-8508 / NF-8601 / NF-8509S?

No. This SKU is the base NF-8509 2-in-1 cable tester + multimeter only (EKO-NF-8509). Those letter/sibling models are separate products and are not included or merged on this page.

Is this the same as the NF-8601 already in the shop?

No. The NF-8601 is a different cable-length / PoE / Ping platform (longer length range, no built-in DMM). This NF-8509 is the compact 2-in-1 wire tracker with digital multimeter—do not mix them.

What cable tests and length range?

RJ45 wiremap, scan, continuity, port flash and PoE, plus length measurement about 5–200 m (±3 m). Scan distance is up to about 600 m on RJ45 (listing).

Does it include a multimeter and NCV?

Yes. AC/DC voltage, resistance, continuity, diode, NCV (0–4 levels), DC current and frequency (per manual), with banana jacks for the test leads.
