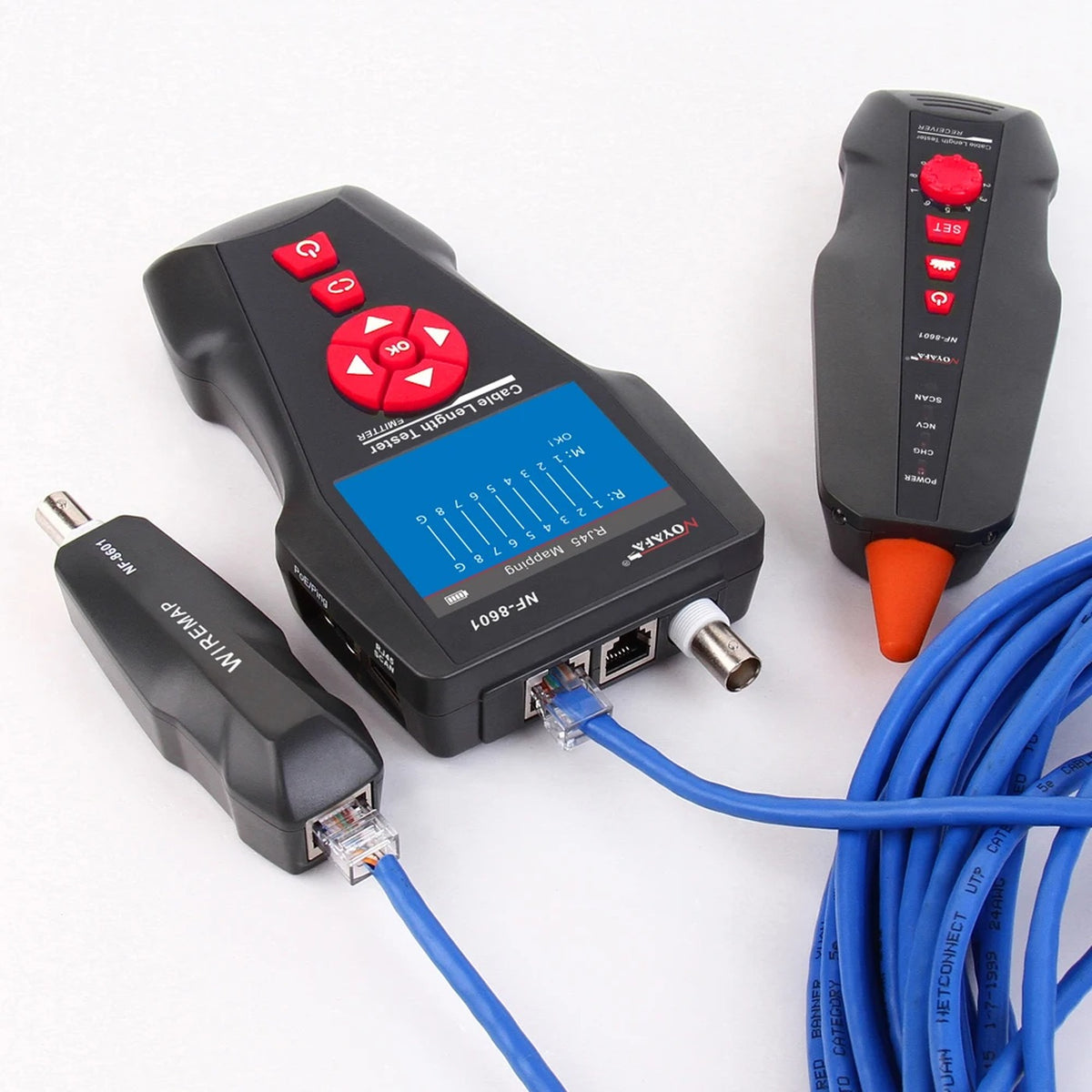

NOYAFA NF-8601 Cable Length Tester – PoE, Ping, Wiremap, Port Flash, 5–2000 m

The NOYAFA NF-8601 is a multi-function network cable length tester for installers who need PoE checks, Ping, wiremap, toning and length in one English-UI handheld. Locate opens, shorts, crosses and reverses on RJ45, RJ11 and BNC runs, then measure length from 5 m to 2000 m with on-device calibration.

Port flash helps you identify the live switch or hub port without hunting blindly; scan works on PoE switches without damaging the device. AC filter and voltage detect support safer tracing around interference. A 2.8" colour LCD and rechargeable lithium pack keep field work readable and cable-free between charges; export up to 160 saved records as TXT to a PC.

Key features

• PoE / Ping / wiremap for RJ45, RJ11 and BNC (short, open, cross, reverse)
• Cable length 5–2000 m with length calibration
• Port flash and scan (including PoE switch) to find the target cable or port
• AC filter and AC voltage detecting for safer tracing
• 2.8" colour LCD, English menus (Mapping / Length / Scan / Ping / PoE)
• 160-group memory, TXT export to PC; 3.7 V lithium rechargeable battery

Specifications

• Model: NF-8601
• Brand: NOYAFA
• Interfaces: RJ45 (Cat5e/6e), RJ11, BNC / coaxial
• Length range: 5–2000 m
• Display: 2.8" colour LCD
• Ship weight: Approx. 0.70 kg

Note: This listing is the NOYAFA NF-8601 only (SKU EKO-NF-8601). It is not the NF-8601S, NF-8601W or NF-8601A, and not the NF-8209 / NF-810 / NF-802 / NF-8108M / NF-981. Do not connect high-voltage lines; follow the manual and local electrical safety rules.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

Is this the NF-8601S / NF-8601W / NF-8601A?

No. This SKU is the base NF-8601 only (EKO-NF-8601). S / W / A variants are separate products and are not included.

What cable types and length range?

RJ45 (Cat5e/6e), RJ11 and BNC/coaxial. Length measurement covers about 5–2000 m with calibration.

Does it support PoE and Ping?

Yes. PoE and Ping testing are included, plus wiremap, port flash and scan (including on PoE switches).

Is this the same as the NF-8209 / NF-810 / NF-802?

No. This is the NF-8601 length/PoE tester only. Do not treat it as NF-8209, NF-810, NF-802, NF-8108M or NF-981.
