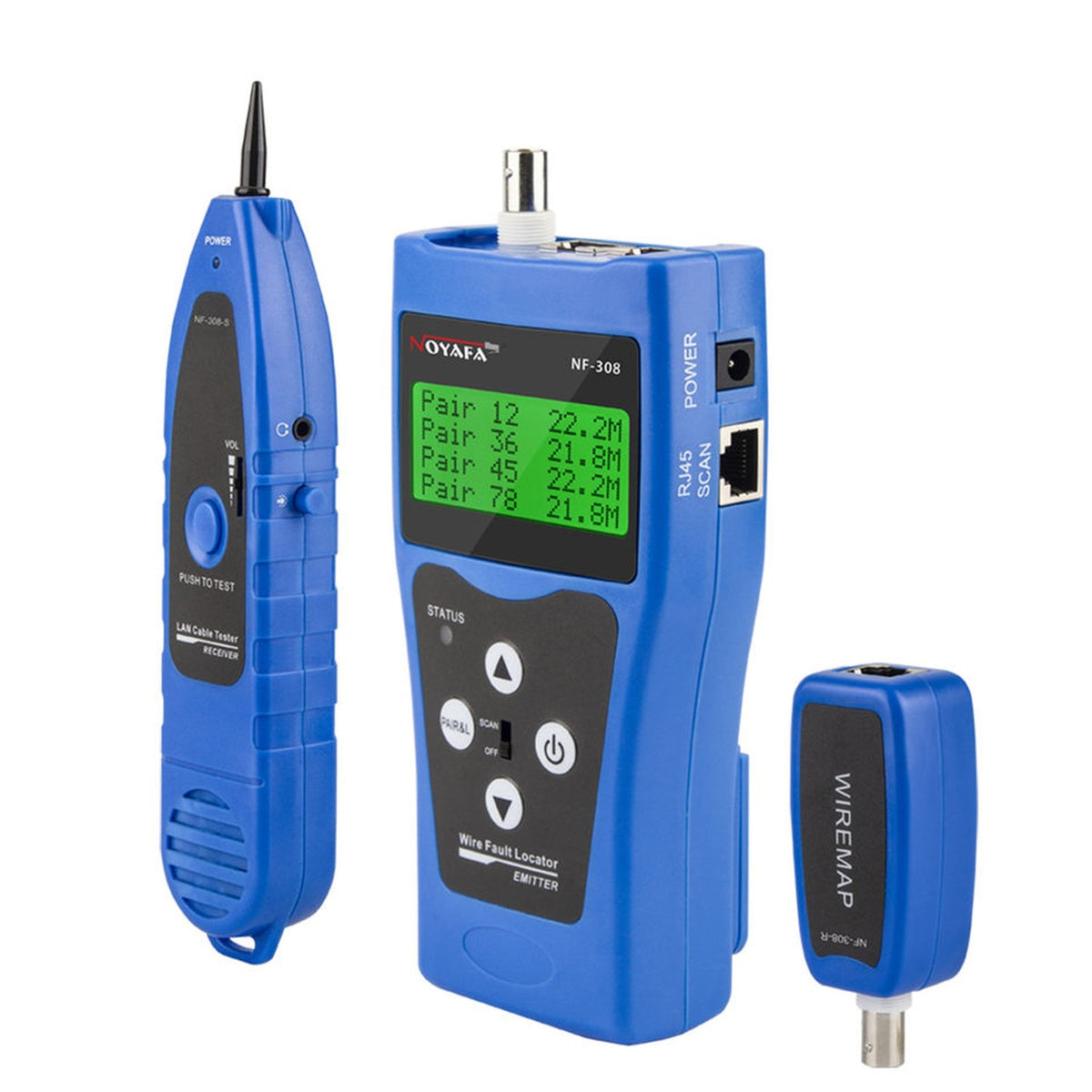

NOYAFA NF-308 Network Cable Tester – RJ45 / RJ11 / BNC / USB Wire Fault Locator

The NOYAFA NF-308 is a multi-purpose network cable tester and wire fault locator for LAN, telephone and coaxial work. Check RJ45, RJ11, BNC and USB runs for opens, shorts, reverses and crosses, then measure twisted-pair length (about 1–350 m) with on-device calibration.

An English LCD shows wiremap and pair results clearly; the tone probe with LED flash and loud speaker helps hunt a cable in a bundle, and remote identifiers (ID 1–8) support one-person mapping at the far end. Auto power-off and backlight keep field use practical on a 9V supply.

Key features

• RJ45 / RJ11 / BNC / USB tracking and continuity checks
• Wiremap for RJ45 and BNC (open, short, reverse, cross)
• Pair & length measurement roughly 1–350 m with user calibration
• Tone probe with LED flash and loud speaker; remote IDs 1–8
• Large LCD with backlight and English UI
• 9V power; portable emitter + receiver kit

Specifications

• Model: NF-308
• Brand: NOYAFA
• Interfaces: RJ45, RJ11, BNC, USB
• Length range (twisted pair): Approx. 1–350 m
• Display: Large LCD with backlight
• Ship weight: Approx. 0.74 kg

Note: This listing is the NOYAFA NF-308 only (SKU EKO-NF-308). It is not the NF-308S or NF-388, and not the NF-8601 / NF-8209 / NF-810 / NF-802 / NF-8108M / NF-981. Accessory silk marks NF-308-S / NF-308-R on the probe/remote are kit part labels, not the NF-308S product line. Do not connect live high-voltage circuits; follow the manual and local electrical safety rules.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

Is this the NF-308S or NF-388?

No. This SKU is the base NF-308 only (EKO-NF-308). NF-308S and NF-388 are separate models and are not included.

Which cable types does it support?

RJ45, RJ11, BNC and USB for tracking/continuity; wiremap focuses on RJ45 and BNC. Twisted-pair length is about 1–350 m with calibration.

Does it include a tone probe?

Yes. The kit uses a tone receiver with LED flash and loud speaker, plus remote identifiers for far-end mapping.

Is this the same as the NF-8601 / NF-8209?

No. This is the NF-308 wire fault locator only. Do not treat it as NF-8601, NF-8209, NF-810, NF-802, NF-8108M or NF-981.
