Home / Construction & Inspection Tools / Wintact WT100A Ultrasonic Thickness Gauge for Metal, 1-225mm Ultrasonic Thickness Meter with 5MHz Probe

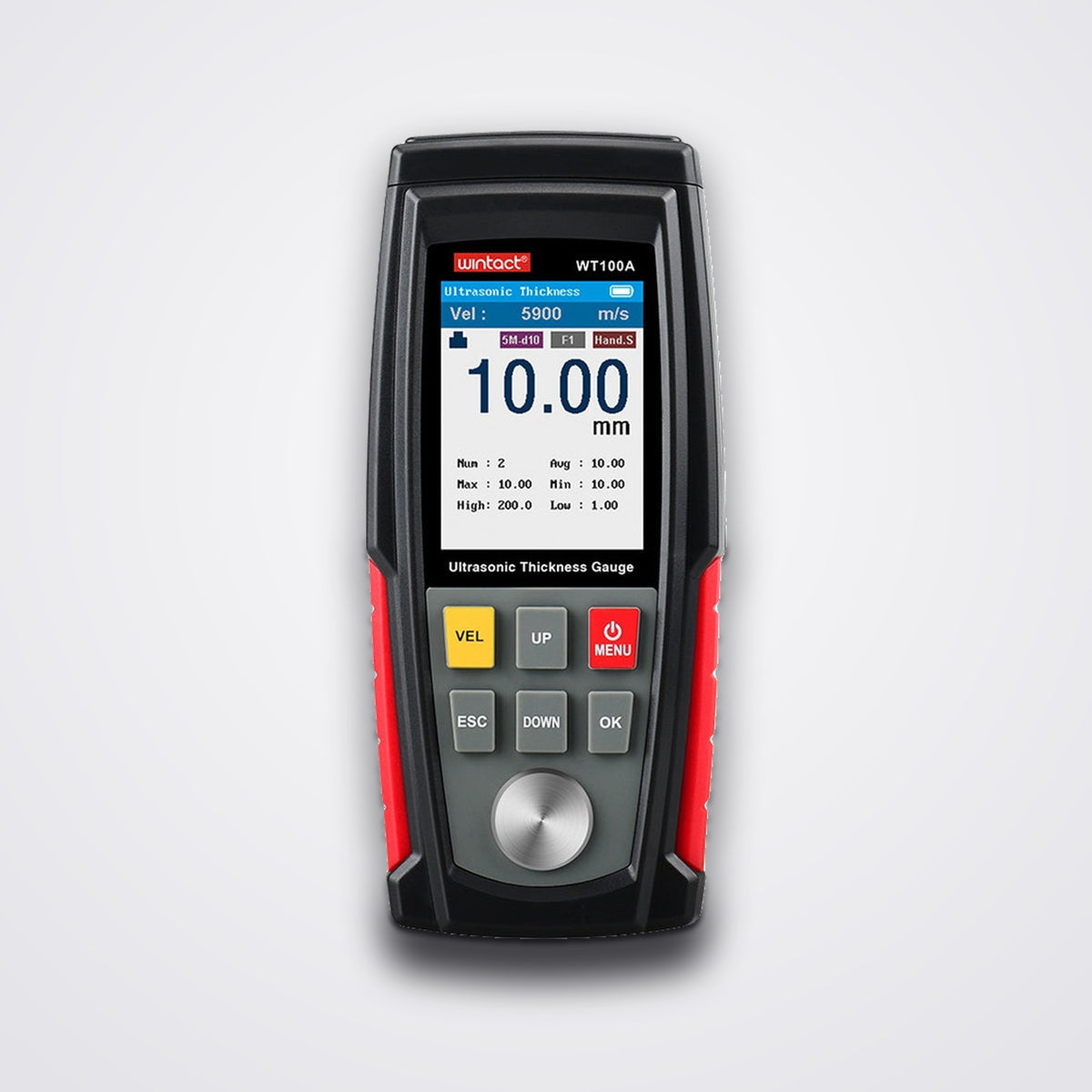

Wintact WT100A Ultrasonic Thickness Gauge for Metal, 1-225mm Ultrasonic Thickness Meter with 5MHz Probe
$123.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The Wintact WT100A is a digital ultrasonic thickness gauge that measures material thickness from 1.00 to 225.0mm from one side, using a 5MHz probe. It is designed for maintenance engineers, NDT inspectors, fabricators and marine surveyors checking metal plate, pipe and tank walls for wear and corrosion.
Technical specifications
| Specification | Value |
| Model | WT100A |
| Measuring range | 1.00 - 225.0mm |
| Probe | 5MHz, φ10 |
| Operating frequency | 5MHz |
| Measurement error | ±(0.5%H+0.05)mm |
| Minimum pipe (steel) | Φ20 x 3mm |
| Sound velocity range | 1000 - 9999 m/s |
| Data storage | 500 readings |
| Display | Colour TFT |
| Battery | 3 x 1.2V Ni-MH rechargeable, micro-USB 5V 1A |
| Dimensions | 65 x 146 x 30 mm |
| Weight | 130g |
FAQ
What does the Wintact WT100A ultrasonic thickness gauge measure?
It measures the thickness of materials such as steel from 1.00 to 225.0mm, from one side, using ultrasound.
How accurate is the WT100A?
Its measurement error is ±(0.5%H+0.05)mm, where H is the measured thickness.
Can the WT100A measure pipes?
Yes. It can measure steel pipe down to Φ20 x 3mm.
