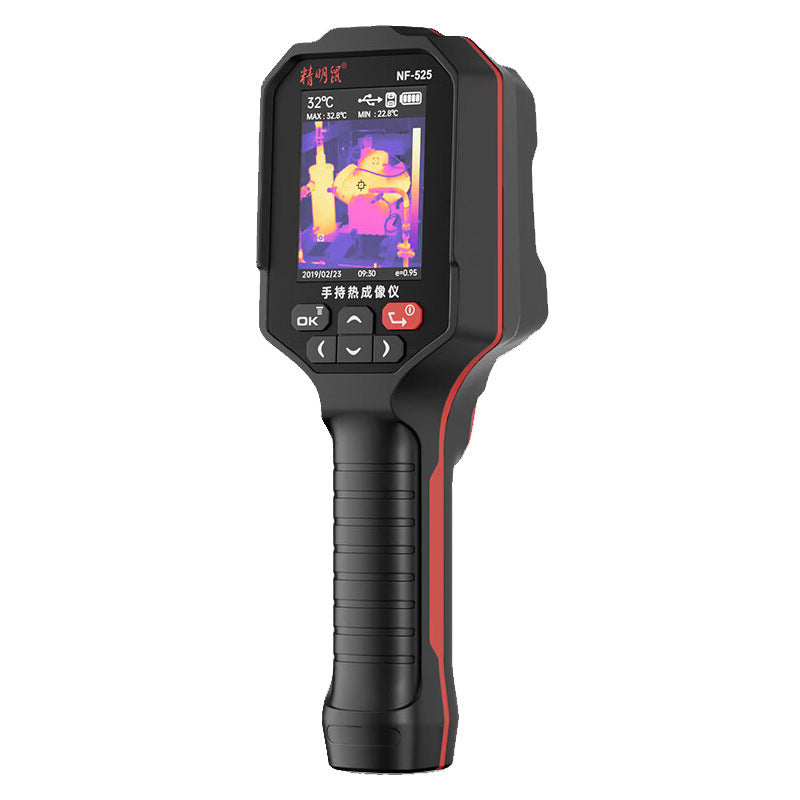

Noyafa NF-525 Handheld Thermal Imaging Camera, 120×90, -10 to 400 °C, Photo & Video

The Noyafa NF-525 is a handheld thermal imaging camera with a 120 × 90 infrared sensor and a 1 MP visible camera. It measures -10 to 400 °C, tracks hot, cold and centre points, and saves photos and videos to 8 GB built-in memory.

Key Specifications

• Model: NF-525
• IR resolution: 120 × 90
• Spectral range: 8–14 μm
• Frame rate: 25 Hz
• Thermal sensitivity (NETD): < 60 mK at 25 °C
• Field of view: 38° × 50°
• Temperature range: -10 to 160 °C (low), 160 to 400 °C (high)
• Accuracy: ±2 °C or ±2% of reading
• Emissivity: 0.01–0.99
• Visible camera: 1 MP
• Display: 2.8-inch colour
• Storage: 8 GB built-in, JPG photos and MP4 video
• Battery: 2600 mAh, about 4 hours, USB-C charging
• Dimensions: 219 × 72 × 66 mm
• Weight: 300 g

Key Features

• Hot, cold and centre point tracking
• Edge fusion, overlay and picture-in-picture modes
• Multiple colour palettes
• Photo and video capture
• USB-C charging and data transfer

Ideal For

• Electrical panels and connections
• Underfloor heating, radiators and pipe leaks
• Damp, insulation and draught checks

In the Box

• NF-525 thermal imaging camera
• USB cable
• User manual
• Gift box

Important Notes

• Not for body temperature measurement
• Shiny metal surfaces may read low; adjust emissivity

Delivery

• Free UK delivery
• Dispatched within 1–2 working days
• Delivered in 5–7 working days
• All prices include VAT
