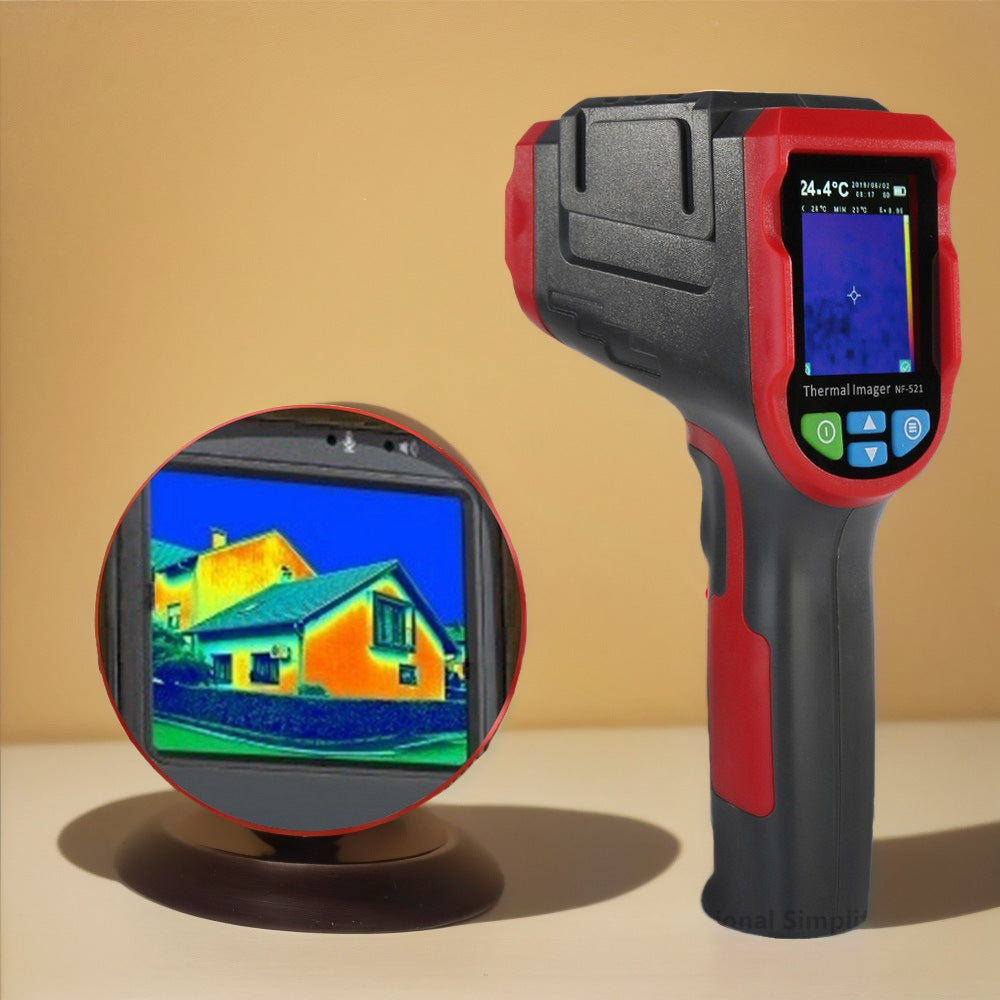

Noyafa NF-521 Thermal Imaging Camera, 32×32 IR, 2 MP Camera, -20 to 400 °C

The Noyafa NF-521 is an entry-level thermal imaging camera with a 32 × 32 (1024-pixel) infrared sensor and a 2 MP visible camera. It measures -20 to 400 °C, blends thermal and visible images, and stores pictures on an included 8 GB card.

Key Specifications

• Model: NF-521
• IR resolution: 32 × 32 (1024 pixels)
• Visible camera: 2 MP
• Spectral range: 8–14 μm
• Field of view: 33° horizontal
• IFOV: 18 mrad
• Thermal sensitivity: 150 mK
• Frame rate: ≤ 9 Hz
• Temperature range: -20 to 400 °C
• Accuracy: ±1.8% or ±1.8 °C (0–400 °C); ±3 °C (-20 to -0.9 °C)
• Emissivity: 0.10–0.99 adjustable
• Response time: 150 ms
• Display: 2.4-inch TFT, 320 × 240
• Battery: 3.7 V 2600 mAh rechargeable
• Storage: 8 GB micro SD card (included), BMP images
• Drop test: 1 m
• Dimensions: 60 × 120 × 210 mm

Key Features

• Thermal, blended and visible camera modes
• Iron, rainbow and grey palettes
• Centre, MAX and MIN temperature display
• USB image transfer and USB charging
• Auto power-off

Ideal For

• Underfloor heating and radiator checks
• Car and engine diagnostics
• Electrical, plumbing and leak checks around the home

In the Box

• NF-521 thermal imaging camera
• 8 GB micro SD card
• USB cable
• Charger
• Carry bag
• User manual

Important Notes

• 32 × 32 sensor is for quick fault finding, not detailed inspection reports
• Not for body temperature measurement
