Wintact WT130A Ultrasonic Thickness Gauge, 1–300 mm, Colour Screen
$278.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The Wintact WT130A is a handheld ultrasonic thickness gauge for measuring metal, plastic, glass and pipe wall thickness from one side, from 1 to 300 mm, with a 2.4-inch colour display, adjustable sound velocity and two probes.
Key Specifications
- Model: WT130A
- Measuring range: 1–300 mm (0.039–11.81 in)
- Resolution: 0.01 mm
- Accuracy: ±(0.5%H + 0.05 mm)
- Sound velocity: 1000–9999 m/s, adjustable
- Response time: Approx. 0.5 s
- Data storage: Up to 1500 readings
- Display: 2.4-inch colour, backlit, 5 colour themes
- Power: 3 × rechargeable batteries, USB charging
Key Features

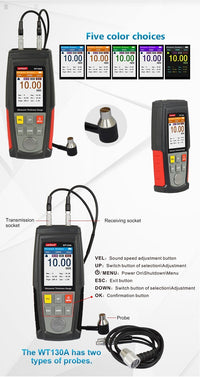

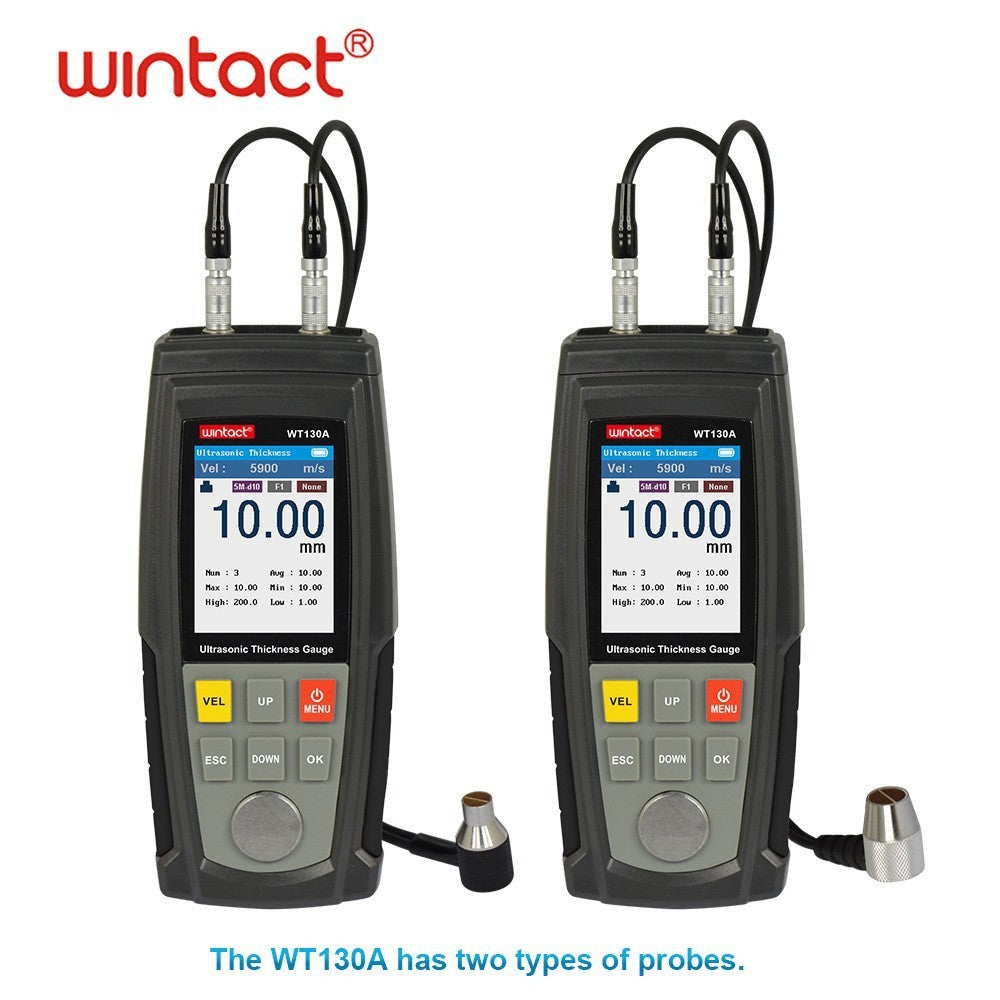

- Two probes included (Φ10 and Φ6)
- Built-in metal calibration block
- Average, MIN, MAX and reading-count statistics
- High and low thickness alarms
- Calibration, auto power-off and factory reset
Ideal For
- Steel, aluminium, copper, brass, plastic, PVC, glass and ceramic
- Pipe and tank wall inspection
- Quality control where only one side is accessible
In the Box
- WT130A thickness gauge
- Φ10 probe
- Φ6 probe
- USB cable
- 3 × rechargeable batteries
- Carry case
- User manual
Important Notes
- Apply coupling gel before measuring
- Not for porous materials such as brick or concrete
Delivery
- Free UK delivery
- Dispatched within 1–2 working days
- Delivered in 5–7 working days
- All prices include VAT
Technical specifications
| Specification | Value |
| Model | WT130A |
| Measuring range | 1–300 mm (0.039–11.81 in) |
| Resolution | 0.01 mm |
| Accuracy | ±(0.5%H + 0.05 mm) |
| Sound velocity | 1000–9999 m/s, adjustable |
| Response time | Approx. 0.5 s |
| Data storage | Up to 1500 readings |
| Display | 2.4-inch colour, backlit, 5 colour themes |
| Power | 3 × rechargeable batteries, USB charging |
FAQ
What can the WT130A measure?
The thickness of materials that conduct ultrasound, such as steel, aluminium, plastic, glass and pipe walls, from 1 to 300 mm.
Do I need access to both sides?
No. It measures from one side only.
How accurate is it?
±(0.5%H + 0.05 mm).
Which probes are included?
A Φ10 probe and a Φ6 probe.
Is delivery free?
Yes. UK delivery is free, dispatched in 1–2 working days.
