Home / Gas & Environment Detectors / NOYAFA NF-524 Handheld Thermal Imaging Camera – 120×90 IR, 25 Hz, −20°C to 400°C

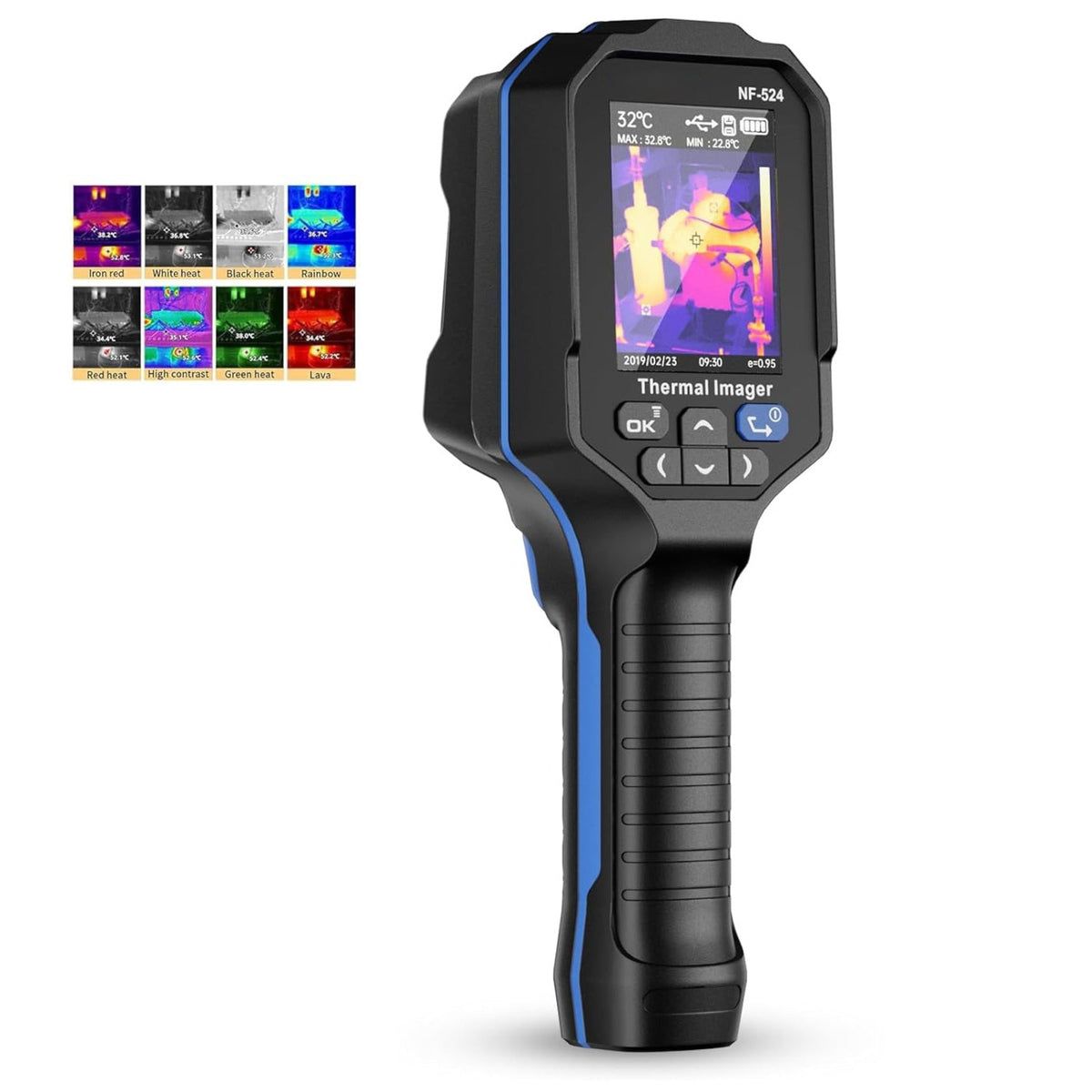

NOYAFA NF-524 handheld thermal imaging camera front view

NOYAFA NF-524 Handheld Thermal Imaging Camera – 120×90 IR, 25 Hz, −20°C to 400°C

£184.49
Free delivery · incl. VAT
Quantity
or
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

The NOYAFA NF-524 is a handheld infrared thermal imaging camera for building diagnostics, HVAC checks and electrical inspections. A 120×90 IR sensor with a 25 Hz frame rate and −20°C to 400°C range helps you find heat leaks, hot spots and insulation gaps on site.

Choose from five image modes (edge fusion, thermal, dual-light fusion, visible light and picture-in-picture) and eight colour palettes, then capture photos or video for reports. A Class 2 laser pointer aids aiming in dim areas; USB-C and built-in storage support transfer to a PC for offline review.

Key features

  • 120×90 IR resolution with thermal sensitivity <60 mK and 25 Hz frame rate
  • Temperature range −20°C to 400°C with centre / max / min spot readouts
  • 5 image modes and 8 colour palettes for inspection contrast
  • Photo & video capture with PC offline analysis support
  • Class 2 laser pointer for targeting; IP54 and 2 m drop-proof design (listing)
  • USB-C rechargeable battery and built-in 8 GB storage

Specifications

  • Model: NF-524
  • Brand: NOYAFA
  • IR resolution: 120×90
  • Frame rate: 25 Hz
  • Temp range: −20°C to 400°C
  • Sensitivity: <60 mK
  • Modes: Edge fusion / thermal / dual-light / visible / PiP
  • Connectivity: USB-C

Note: This listing is the NOYAFA NF-524 only (SKU EKO-NF-524). It is not the NF-521, NF-522, NF-525 or NF-526E. Use as a screening / diagnostic tool; follow local electrical and fire-safety rules for live work. Laser: Class 2, <1 mW — do not stare into the beam.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

What is the IR resolution of the NF-524?

120×90 thermal imaging resolution, with a 25 Hz frame rate and thermal sensitivity under 60 mK.

What temperature range does it cover?

−20°C to 400°C (−4°F to 725°F), with centre, maximum and minimum temperature markers.

Does it record video and connect to a PC?

Yes. One-key photo and video capture are included, with USB-C transfer for offline PC analysis (per Tilswall listing).

Is this the same as the NF-521 or NF-522?

No. This is the NF-524 only (SKU EKO-NF-524). Do not treat it as the NF-521 or NF-522 listing.

Is UK delivery free?

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
