Home / Gas & Environment Detectors / NOYAFA NF-522 Handheld Thermal Imaging Camera – 200×150 IR, −40°C to 330°C

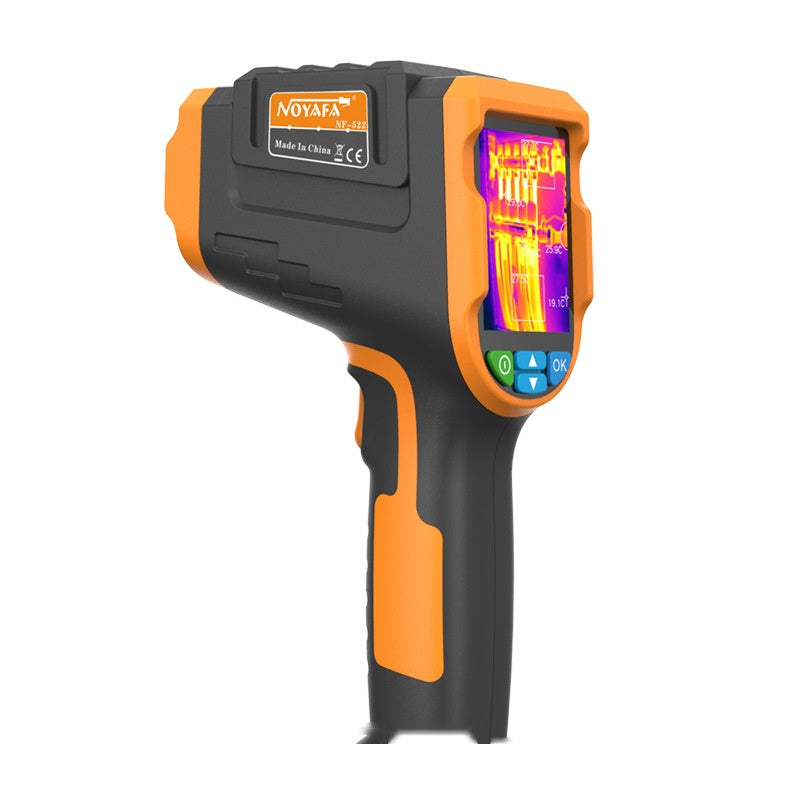

NOYAFA NF-522 handheld thermal imaging camera front three-quarter view

NOYAFA NF-522 Handheld Thermal Imaging Camera – 200×150 IR, −40°C to 330°C

£278.49
Free delivery · incl. VAT
Quantity
or
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

The NOYAFA NF-522 is a handheld infrared thermal imaging camera for site inspections, building diagnostics and equipment checks. A 200×150 IR sensor with −40°C to 330°C range and 65 mK sensitivity helps you spot heat leaks, electrical hot spots and HVAC issues without guesswork.

Switch between infrared, edge-detection and dual-light fusion views, then use on-screen centre / max / min temperature markers for quick spot checks. Video capture supports documenting findings for reports and handover notes.

Key features

  • 200×150 IR resolution with 35° × 26° field of view
  • Temperature range −40°C to 330°C; thermal sensitivity 65 mK; 9 Hz frame rate
  • Imaging modes: infrared, infrared edge detection and dual-light fusion
  • On-screen markers: centre, maximum and minimum temperature points
  • Video capture for inspection records
  • USB connectivity; rechargeable Li-ion power

Specifications

  • Model: NF-522
  • Brand: NOYAFA
  • IR resolution: 200×150
  • FOV: 35° × 26°
  • Temp range: −40°C to 330°C
  • Sensitivity: 65 mK
  • Frame rate: 9 Hz
  • Modes: IR / IR edge / dual-light fusion

Note: This listing is the NOYAFA NF-522 only (SKU EKO-NF-522). It is not the NF-521, NF-525 or NF-526E. Use as a screening / diagnostic tool; follow local electrical and fire-safety rules for live work.

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.

FAQ

What is the IR resolution of the NF-522?

200×150 thermal imaging resolution (AmzUK product description). Some marketplace copy also cites 220×160 display detail.

What temperature range does it cover?

−40°C to 330°C, with 65 mK thermal sensitivity and a 9 Hz frame rate.

Does it support dual-light fusion and video?

Yes. Imaging modes include infrared, edge detection and dual-light fusion, plus video capture for records.

Is this the same as the NF-521?

No. This is the NF-522 only (SKU EKO-NF-522). Do not treat it as the NF-521 listing.

Is UK delivery free?

Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
