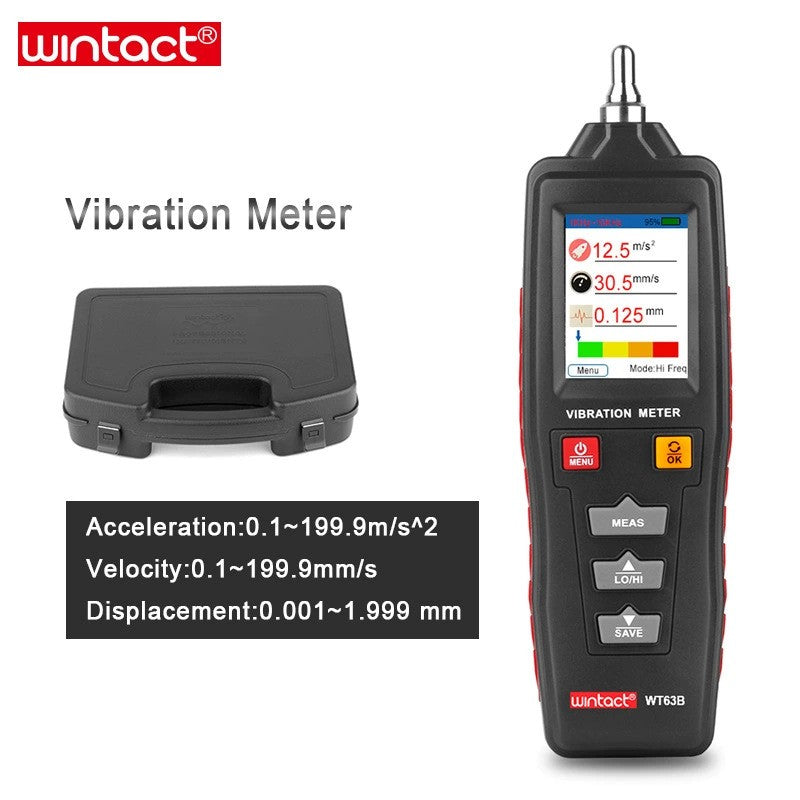

Wintact WT63B Digital Vibration Meter, Acceleration, Velocity & Displacement

The Wintact WT63B is a handheld colour-screen vibration meter for machinery condition checks. It measures acceleration, velocity and displacement with a piezoelectric accelerometer, and has a rotating screen and built-in flashlight.

Key Specifications

• Model: WT63B
• Acceleration: 0.1–199.9 m/s² (peak)
• Velocity: 0.1–199.9 mm/s (RMS)
• Displacement: 0.001–1.999 mm
• Frequency range: 10 Hz–1 kHz (LO); 1 kHz–15 kHz (HI) acceleration
• Sensor: Piezoelectric ceramic accelerometer
• Data storage: 7 groups
• Power: 2 × 1.5 V AAA batteries
• Dimensions: 180 × 54 × 30 mm
• Weight: 250 g including batteries

Key Features

• Acceleration, velocity and displacement modes
• Colour display with four-way screen flip
• Two measurement keys for level or vertical use
• Built-in flashlight for dark areas
• Spiral probe interface with short and long probes

Ideal For

• Motors, pumps, fans and compressors
• Preventive maintenance rounds
• HVAC and plant condition monitoring

In the Box

• WT63B vibration meter
• Short probe
• Long probe
• 2 × AAA batteries
• Carry case
• User manual

Important Notes

• Measure at the same point and direction each time to compare readings
• Keep clear of moving parts when measuring

Delivery

• Free UK delivery
• Dispatched within 1–2 working days
• Delivered in 5–7 working days
• All prices include VAT
