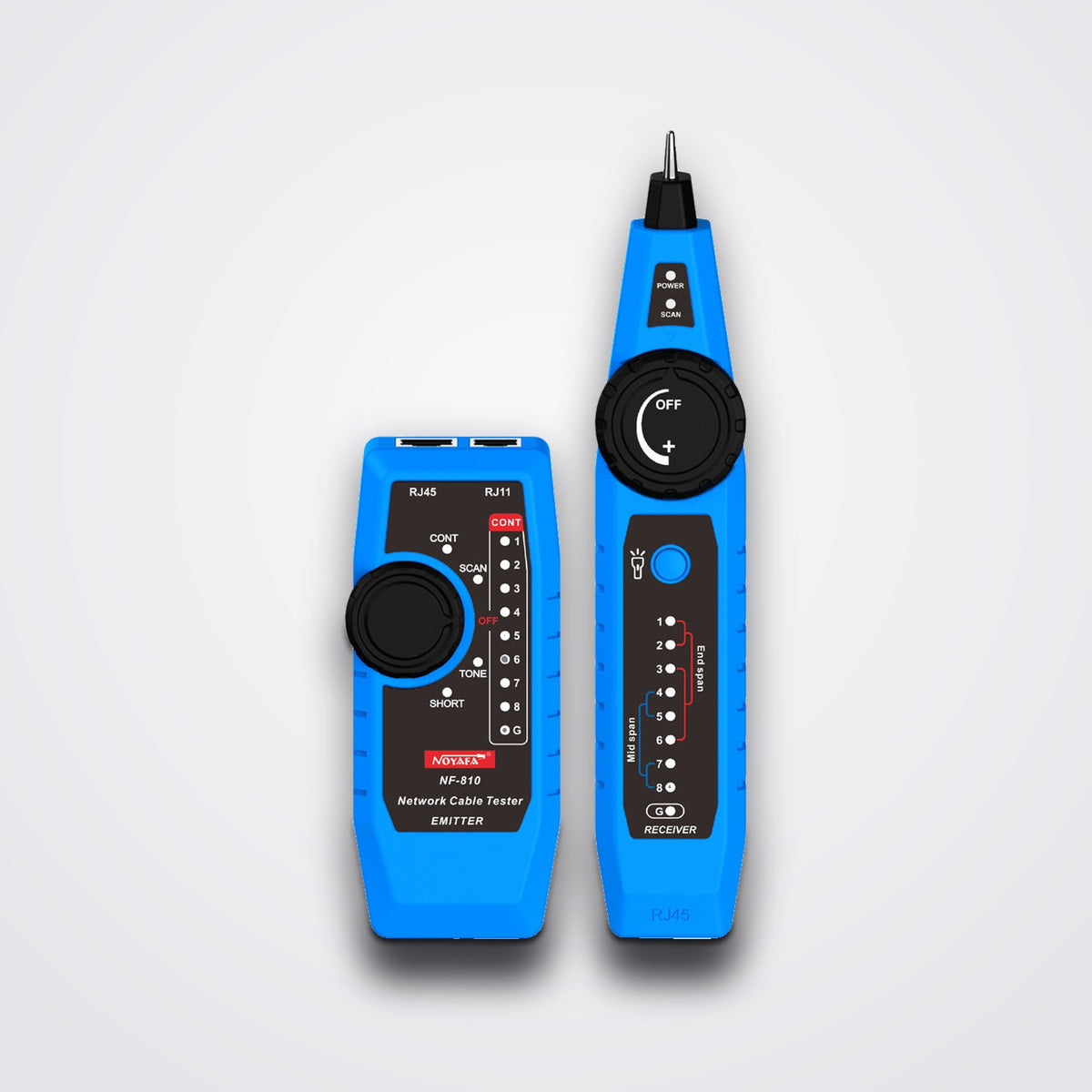

NOYAFA NF-810 Wire Tracer & Network Cable Tester, PoE
$70.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The NOYAFA NF-810 is a multifunction RJ45 network cable tester and wire tracker for CAT5, CAT6 and telephone cable. It suits network installers, IT technicians and electricians who need to trace cables, check wiremaps and test PoE switch ports on site.
Technical specifications
| Specification | Value |
| Model | NF-810 |
| Applicable cable | CAT5, CAT6 and telephone cable |
| Interfaces | RJ11 / RJ45 |
| Wiremap | Open, short and cross faults, including STP cable |
| Tracing | RJ11, RJ45 and other metal cables; dual-tone pulse signal, up to 1km |
| Sensitivity adjustment | Yes |
| PoE switch test | Yes |
| Telephone line test | Polarity and status (idle, ringing, in conversation) |
| Interface withstand voltage | 60V |
| Extras | LED light, earphone socket for noisy environments |
| Labels | English on the unit; LED indicators, no text screen |
FAQ
What can the NOYAFA NF-810 test?
It checks RJ45 wiremaps for open, short and crossed pairs, traces RJ11/RJ45 and other cables, tests PoE switch ports and checks telephone line polarity and status.
How far can it trace a cable?
The tracing signal reaches up to 1km.
Is it protected against voltage on the line?
Yes, the interfaces withstand up to 60V.
Does it have a screen?
No, it uses LED indicators with English labels on the unit.
Is delivery free?
Yes, delivery is free and Prices include UK VAT.
