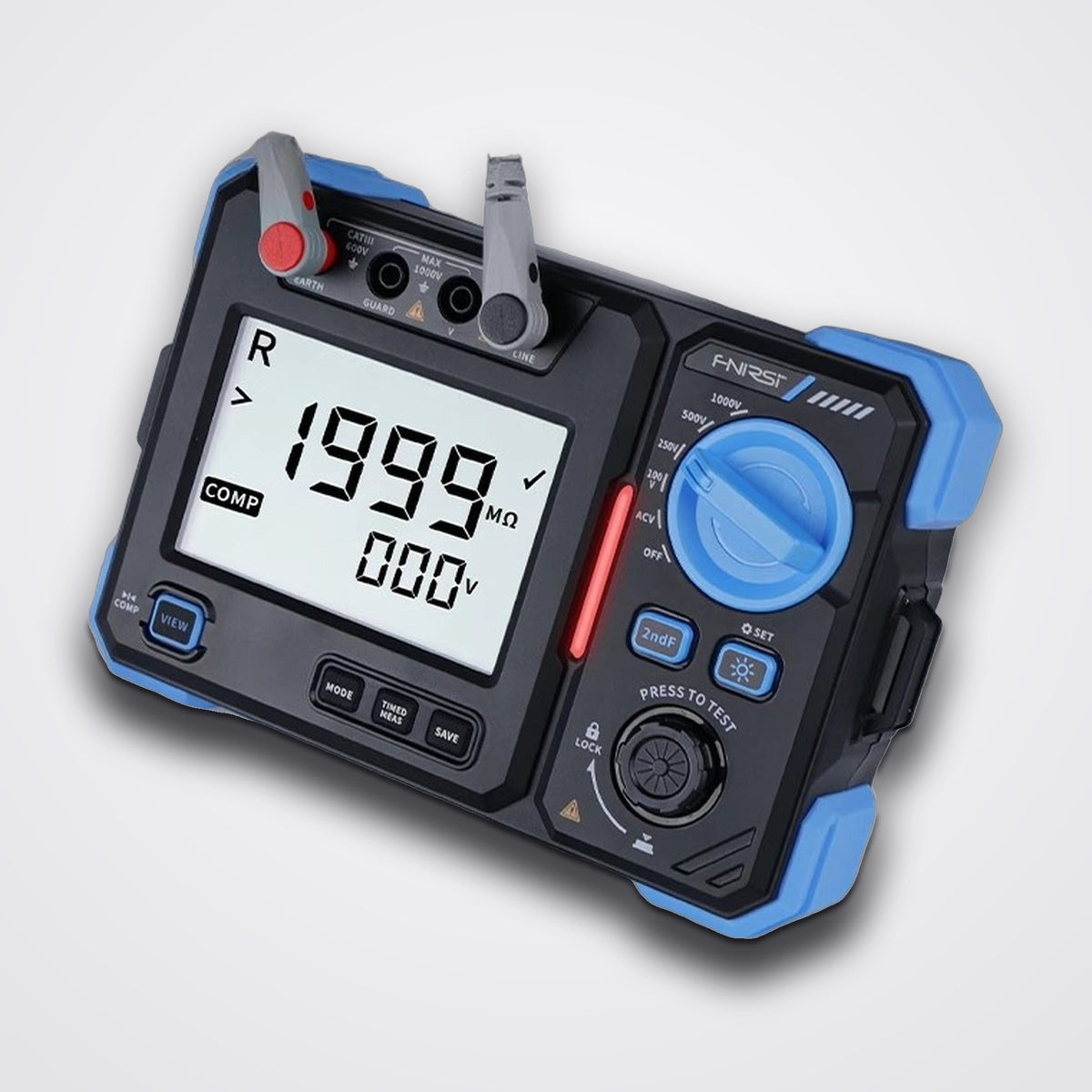

FNIRSI MRT1050 Insulation Resistance Tester, 1000V, 20GΩ
Four test voltages up to 1000V, measuring from 0.1MΩ to 20GΩ.
$145.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The FNIRSI MRT1050 is a digital insulation resistance tester for routine checks on cables, motors, switchgear and other electrical equipment. It offers four test voltages from 100 V to 1000 V and measures insulation resistance from 0.1 MΩ to 20 GΩ with ±(5% + 3 digits) accuracy.
Alongside standard insulation tests it handles polarisation index (PI), dielectric absorption ratio (DAR), timed and continuous measurements, plus AC/DC voltage measurement. A compare function lets you preset pass/fail limits with an audible alarm, and automatic discharge safely releases residual charge after each test, backed by high-voltage warning and low-battery indication.
Up to 100 results can be stored, and the backlit dual-area display shows resistance, unit, test voltage and time at a glance. It runs on 8 × AA batteries or a 12 V DC supply.
Key features
Four test voltages. Up to 20GΩ.
Why choose it
- 01Four test voltages — 100, 250, 500 and 1000V, to match the test to the circuit

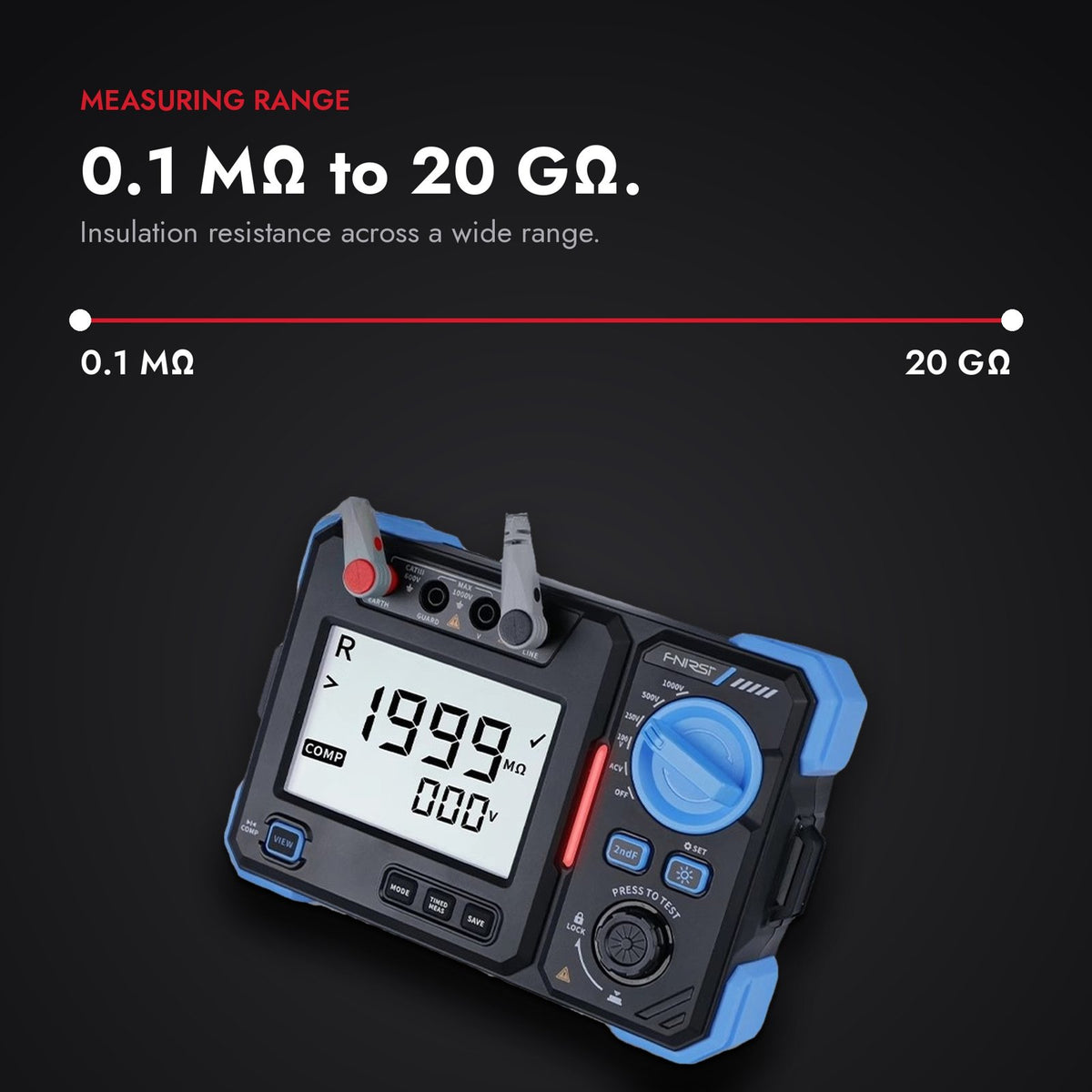

- 02Wide measuring range from 0.1MΩ up to 20GΩ
- 03Four voltages, one instrument — one tester covers all four test settings
Best for
- Checking cable and wiring insulation
- Motor and appliance maintenance
- Electrical maintenance and fault-finding
Not forFormal BS 7671 certification testing

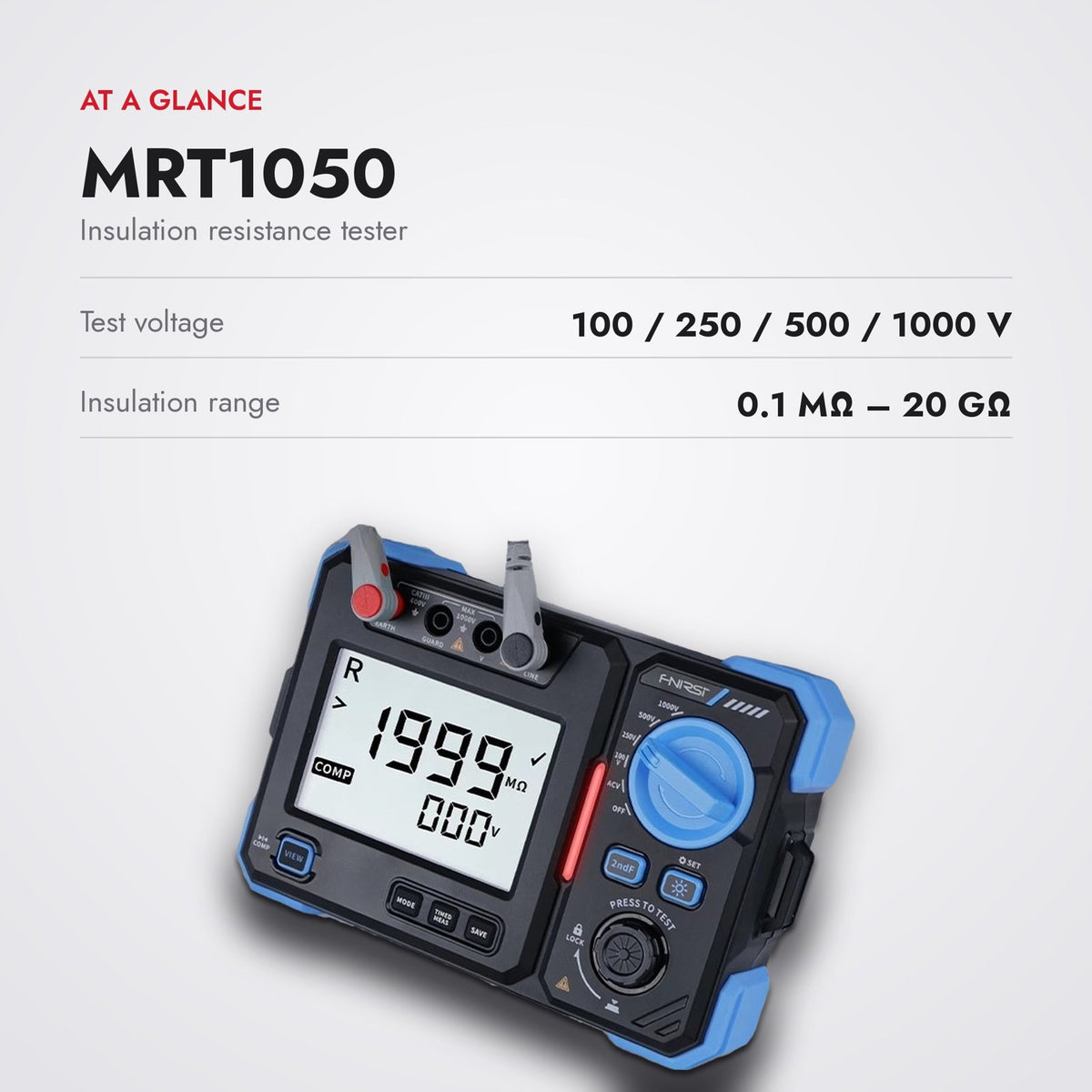

Technical specifications
| Specification | Value |
| Insulation test voltages | 100 V / 250 V / 500 V / 1000 V |
| Maximum test voltage | 1000 V |
| Insulation resistance range | 0.1 MΩ – 20 GΩ |
| Range at 100 V | 0.1 MΩ – 200 MΩ |
| Range at 250 V | 0.1 MΩ – 2 GΩ |
| Range at 500 V | 0.5 MΩ – 5 GΩ |
| Range at 1000 V | 3 MΩ – 20 GΩ |
| Insulation accuracy | ±(5% + 3 digits) |
| DC voltage range | 0 – ±1000 V |
| AC voltage range | 30 – 750 V |
| Test functions | Insulation resistance, PI, DAR, timed and continuous measurement |
| Safety features | Auto discharge, high-voltage warning, low-battery indication, compare alarm |
| Data storage | Up to 100 records |
| Display | Backlit, main and auxiliary display areas |
| Auto power-off | Yes (time not stated) |
| Power supply | 8 × AA batteries or DC 12 V |
| Dimensions | Approx. 182 × 124 × 66 mm |
| Weight | Approx. 684 g |
FAQ
What test voltages does the MRT1050 offer?
100 V, 250 V, 500 V and 1000 V.
What is the measuring range?
Insulation resistance from 0.1 MΩ to 20 GΩ with ±(5% + 3 digits) accuracy.
Can it measure PI and DAR?
Yes, along with timed and continuous insulation tests.
Does it discharge the circuit after testing?
Yes, residual charge is released automatically after each test.
How is it powered?
It runs on 8 × AA batteries or an external 12 V DC supply.
Is delivery free?
Yes, delivery is free. Prices are incl. VAT.
