FNIRSI LPM-10 Network Cable Tester – LPM-10A / LPM-10C
$134.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

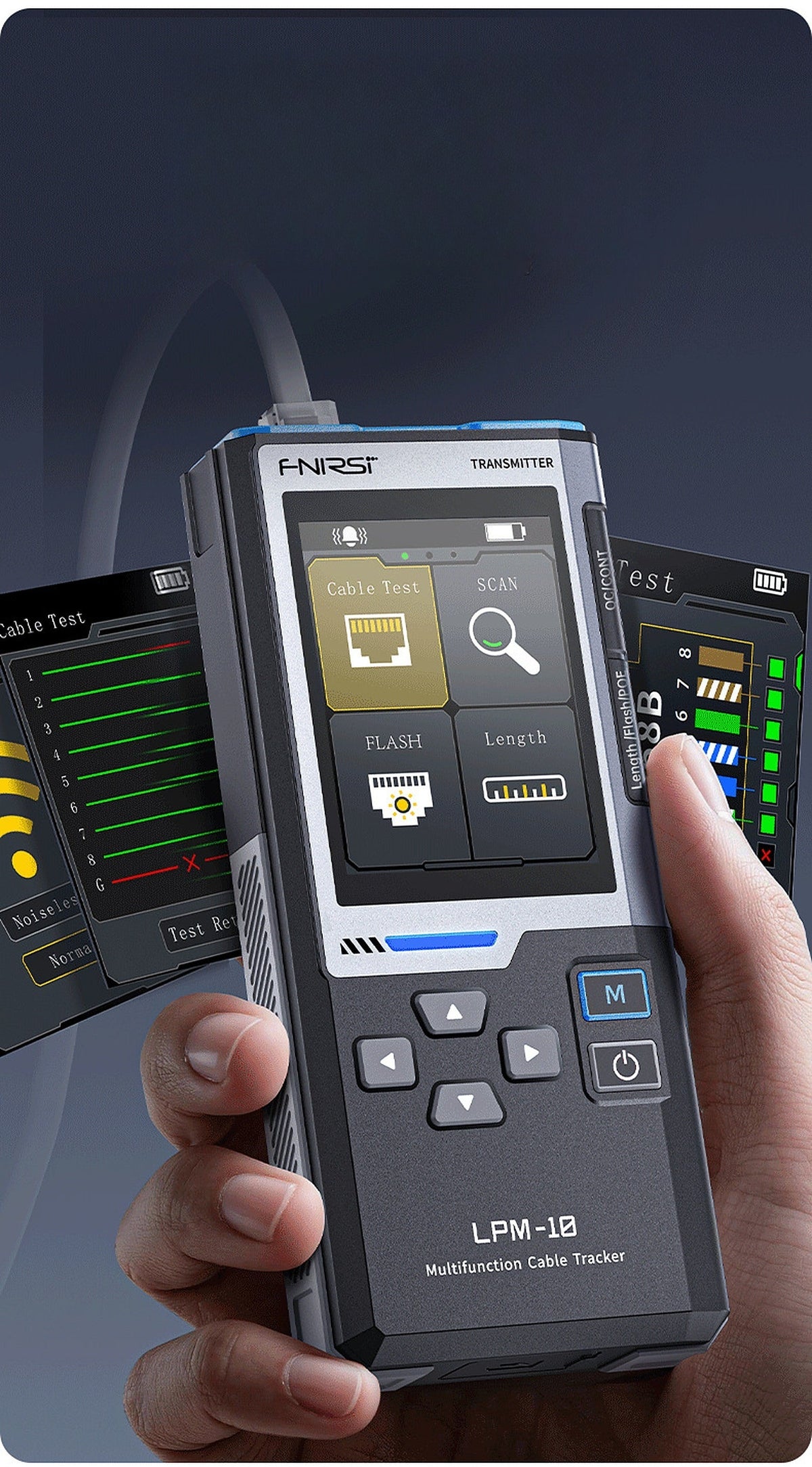

The FNIRSI LPM-10 is a transmitter-and-receiver network cable tester and tracer with a 2.4" colour screen. Both models test RJ45 wiring, trace cables, check PoE, link speed and cable length. The LPM-10C adds PING testing and IP scanning for network troubleshooting.

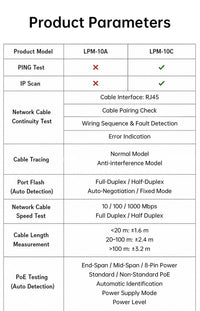

Compare the Models
| Specification | LPM-10A | LPM-10C |
|---|---|---|

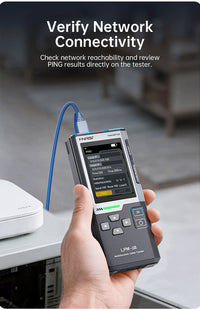

| PING test | — | Local/target IP; send/receive/loss and min/max/avg statistics |

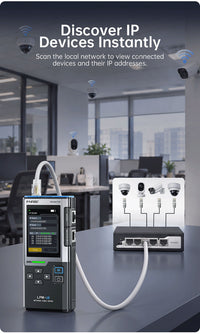

| IP scan | — | Scans an IP range to list connected devices |
| RJ45 continuity | Pairing, wiring sequence, open/short/crossed/miswired detection | Pairing, wiring sequence, open/short/crossed/miswired detection |
| CONT & QC | Continuity and RJ45 crimp check | Continuity and RJ45 crimp check |
| Cable tracing | Normal / anti-interference; Ethernet & telephone; alligator clip | Normal / anti-interference; Ethernet & telephone; alligator clip |
| Port flash | Auto detection; full/half duplex; auto-negotiation / fixed | Auto detection; full/half duplex; auto-negotiation / fixed |
| Link speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Cable length accuracy | <20 m ±1.6 m; 20–100 m ±2.4 m; >100 m ±3.2 m | <20 m ±1.6 m; 20–100 m ±2.4 m; >100 m ±3.2 m |
| PoE | End-span / mid-span / 8-pin, standard / non-standard, supply mode and power level | End-span / mid-span / 8-pin, standard / non-standard, supply mode and power level |

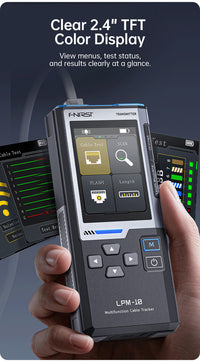

| Display | 2.4" TFT colour, adjustable backlight | 2.4" TFT colour, adjustable backlight |
| Power | Rechargeable, USB-C 5 V/1 A; auto-off 5/10/15 min | Rechargeable, USB-C 5 V/1 A; auto-off 5/10/15 min |
| Size | approx. 152 × 68 × 31 mm | approx. 152 × 68 × 31 mm |
Shared specifications
- Transmitter-and-receiver kit
- Receiver: sensitivity adjustment, trace modes, wire sequence comparison, NCV detection, flashlight, low-voltage warning, headphone support
- Interface language: English
Images show the LPM-10 series housing; the unit's printed model label may differ.
FAQ
Which model should I choose?
Choose the LPM-10A for cable work: RJ45 wiring checks, tracing, PoE, link speed and cable length. Choose the LPM-10C if you also need PING testing and IP scanning to troubleshoot live networks.
Can the LPM-10 test PoE?
Yes. Both models auto-detect end-span, mid-span and 8-pin PoE, standard and non-standard, with supply mode and power level.
How accurate is the cable length measurement?
±1.6 m under 20 m, ±2.4 m from 20–100 m and ±3.2 m over 100 m.
How is it powered?
It is rechargeable via USB Type-C (5 V/1 A), with auto power-off after 5, 10 or 15 minutes.
What link speeds does it test?
10/100/1000 Mbps, full and half duplex.
Technical specifications
| Specification | Value |
| Model | LPM-10A |
| PING / IP scan | Not included on LPM-10A (LPM-10C only) |
| RJ45 continuity test | Pairing check, wiring sequence & fault detection (open, short, crossed, miswired), error indication |
| CONT & QC test | Continuity and RJ45 crimp check |
| Cable tracing | Normal and anti-interference modes; Ethernet & telephone cables; alligator-clip tracing |
| Port flash | Auto detection; full/half duplex; auto-negotiation / fixed mode |
| Link speed test | 10/100/1000 Mbps, full/half duplex |
| Cable length accuracy | <20 m: ±1.6 m; 20–100 m: ±2.4 m; >100 m: ±3.2 m |
| PoE testing | Auto detection: end-span / mid-span / 8-pin, standard / non-standard PoE, supply mode and power level |
| Receiver | Sensitivity adjustment, trace modes, wire sequence comparison, NCV detection, flashlight, low-voltage warning, headphone support |
| Display | 2.4" TFT colour screen, adjustable backlight |
| Power | Rechargeable, USB Type-C (5V/1A); auto power-off 5/10/15 min |
| Languages | English / Chinese |
| Size | approx. 152 × 68 × 31 mm |
FAQ
What does the FNIRSI LPM-10A test?
RJ45 continuity and wiring faults, crimps, cable tracing, port flash, 10/100/1000 Mbps link speed, cable length and PoE.
Does the LPM-10A have IP scan or PING?
No. IP scan and PING are only on the LPM-10C.
How accurate is the length measurement?
±1.6 m under 20 m, ±2.4 m from 20–100 m and ±3.2 m above 100 m.
How is it powered?
Both units are rechargeable via USB Type-C (5V/1A), with auto power-off at 5, 10 or 15 minutes.
Is delivery free?
Yes, delivery is free.
