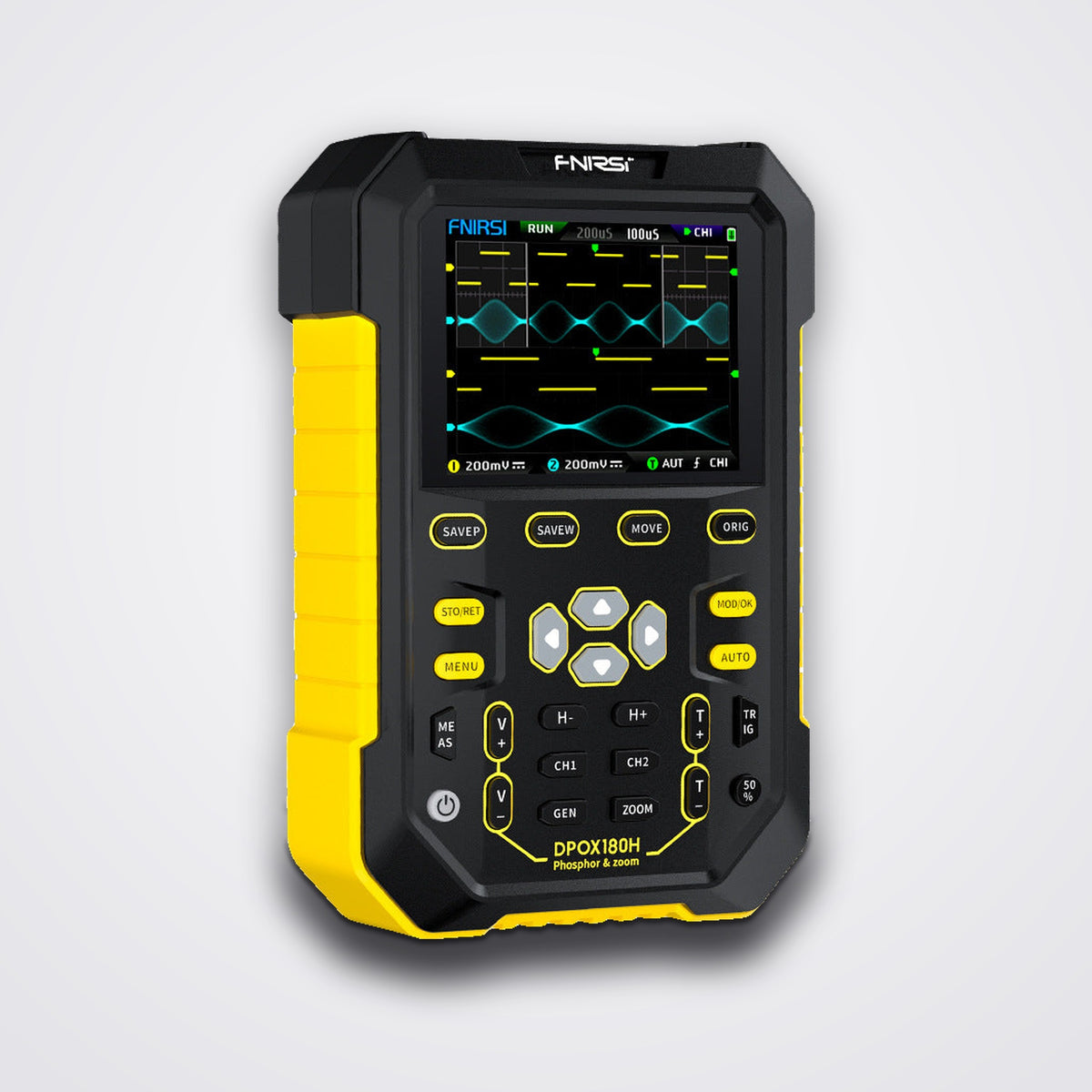

FNIRSI DPOX180H Phosphor Oscilloscope, 180MHz 2CH + DDS
$291.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The FNIRSI DPOX180H is a 2-in-1 handheld dual-channel digital phosphor oscilloscope and DDS signal generator, with 180MHz bandwidth and 500MSa/s real-time sampling. A 50,000 wfm/s capture rate and colour-temperature display make rare glitches easier to spot, making it a strong portable choice for repair technicians, R&D engineers and students.
Specifications
- Channels: 2
- Analogue bandwidth: 180MHz
- Real-time sampling rate: 500MSa/s
- Waveform capture rate: 50,000 wfm/s
- Memory depth: 120Kpts
- Input impedance: 1MΩ / 18pF
- Time base: 5ns - 50s
- Input protection: Up to 400V
- Triggering: Digital trigger: auto / normal / single, rising / falling edge
- Analysis: FFT, X-Y mode, roll mode, cursor measurement, 12 auto measurements
- Signal generator: DDS, 14 waveforms, 1Vpp; sine up to 20MHz, others up to 10MHz
- Storage: 250 waveform sets, 90 screenshots; USB export
- Display: 2.8-inch IPS, 320 x 240
- Battery: 3000mAh rechargeable
- Charging: USB charging, cable included (no wall adapter); 5V 2A
- Dimensions: 135 x 90 x 40mm
- Interface language: English
Delivery
Free delivery, with taxes included.
FAQ
What is the FNIRSI DPOX180H?
A handheld 2-channel 180MHz digital phosphor oscilloscope with a built-in DDS signal generator.
What can the signal generator output?
14 standard waveforms at 1Vpp, with sine waves up to 20MHz and other waveforms up to 10MHz.
How is the DPOX180H charged?
USB charging, cable included (no wall adapter). It charges at 5V 2A from a standard USB charger.
What is the maximum input voltage?
All ranges are protected against high voltage up to 400V.
Is delivery free?
Yes, delivery is free and Prices include UK VAT.
