Home / Measuring & Layout / Wintact WT5110 Portable Pressure Manometer – ±100 kPa, Differential, Temperature Compensation

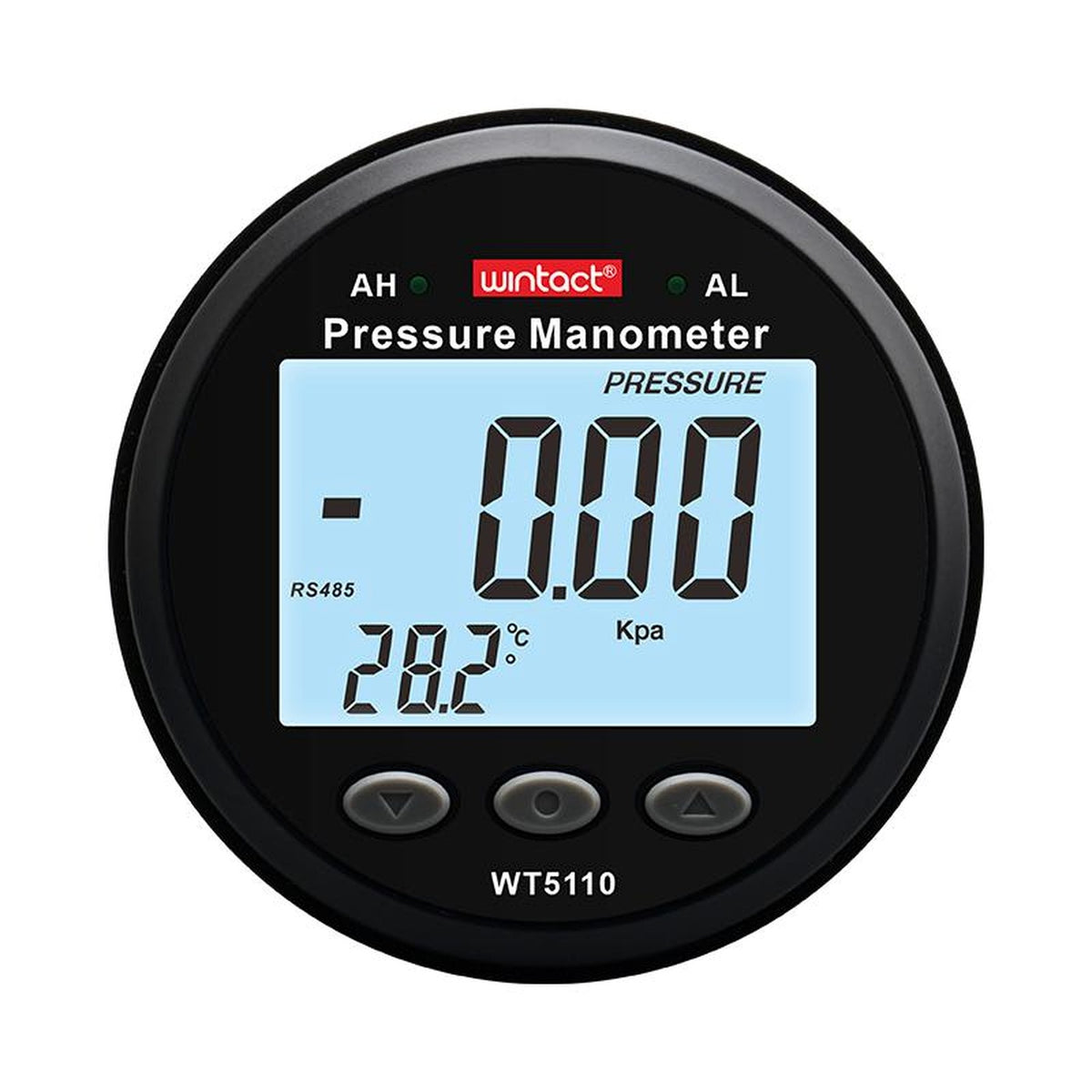

Wintact WT5110 Portable Pressure Manometer – ±100 kPa, Differential, Temperature Compensation
£73.49
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The Wintact WT5110 is a portable high-precision pressure manometer for HVAC, laboratory checks and gas-pipeline monitoring. This listing is the ±100 kPa version, with temperature compensation and ±0.3% FS accuracy for stable field readings.
Switch among 12 pressure units, take differential measurements, record max/min/average values, hold data and zero-calibrate on site. An RS-485 interface supports external logging; the backlit LCD and low-battery indicator keep the meter usable on mobile inspections.
Key features
- ±100 kPa range (this SKU) with ±0.3% FS accuracy and temperature compensation
- 12 units including bar, kPa, psi, mmHg, cmH₂O and inH₂O
- Differential pressure, max/min/average recording, data hold and zero calibration
- RS-485 communication interface
- 3×FS overload / 5×FS burst pressure rating (listing)
- Backlit LCD with low-battery indicator; portable kit design
Specifications
- Model: WT5110
- Brand: Wintact
- Range: ±100 kPa
- Accuracy: ±0.3% FS
- Units: 12 selectable
- Interface: RS-485
- Display: Backlit LCD
- Ship weight: Approx. 0.41 kg
Note: This listing is the Wintact WT5110 / ±100 kPa only (SKU EKO-WT5110). It is not the GM510, GM520, NF-565, or other WT5110 range options (1 / 2.5 / 5 / 10 / 50 kPa). Use as a screening / survey meter; follow local pressure-system safety rules.
Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
FAQ
What range is this WT5110?
This SKU is the ±100 kPa version only. Other WT5110 range options are not included in this listing.
How accurate is it?
Listing accuracy is ±0.3% FS, with temperature compensation for varying conditions.
Does it measure differential pressure?
Yes. Differential measurement is included, plus max/min/average recording, data hold and zero calibration.
Is this the same as the GM510 / GM520 / NF-565?
No. This is the Wintact WT5110 only (SKU EKO-WT5110). Do not treat it as BENETECH GM510/GM520 or NOYAFA NF-565.
Is UK delivery free?
Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
