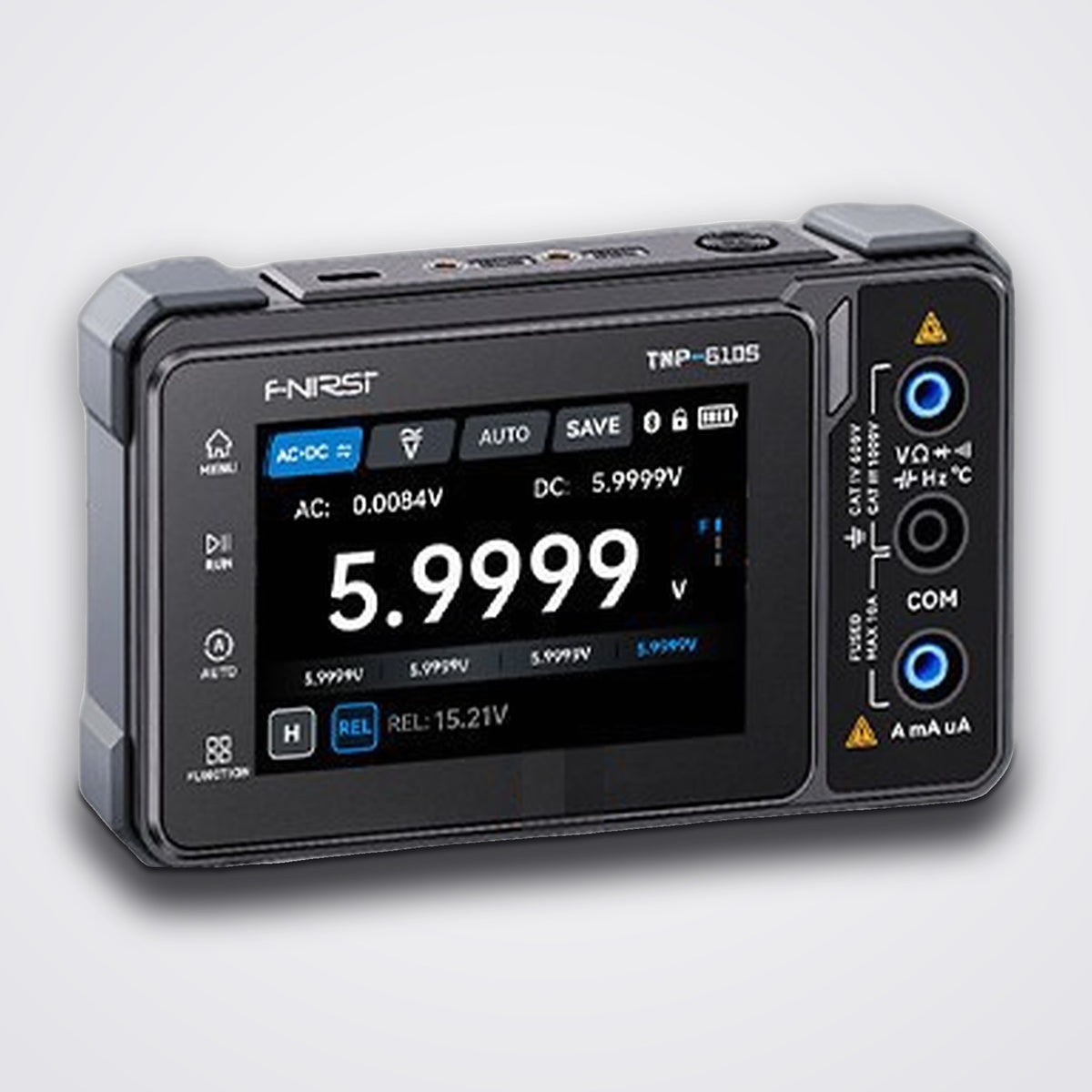

FNIRSI TMP610S 3-in-1 Multimeter, Oscilloscope & Generator
60000-count True RMS multimeter, 10 MHz oscilloscope and 13-waveform signal generator in one handheld unit.
$351.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The FNIRSI TMP610S combines a 60000-count True RMS multimeter, a 10 MHz single-channel oscilloscope and a 13-waveform signal generator in one handheld unit with a 3.5-inch touchscreen.
Why choose it
- 01Three instruments in one — multimeter, 10 MHz oscilloscope and 13-waveform signal generator
- 0260000-count True RMS multimeter — DC voltage up to 1000 V, current 600 µA–10 A
- 03Rechargeable — built-in 3000mAh battery, 10+ hours, USB Type-C charging
Technical specifications
| Specification | Value |
| Model | TMP610S |
| Oscilloscope | 1 channel, 10 MHz bandwidth, 48 MSa/s real-time sampling, 1 MΩ input impedance, AC/DC coupling |
| Oscilloscope input | Max ±40 V (1:1 probe) / ±400 V (10:1 probe); 10 mV–10 V/div |
| Timebase and trigger | 50 ns–20 s; auto / normal / single trigger |
| Multimeter | 60000 count, True RMS, auto/manual range |
| DC voltage | Up to 1000 V, ±(0.03%+5d) |
| AC voltage | Up to 750 V |
| Current | 600 µA–10 A |
| Resistance | 600 Ω–60 MΩ |
| Capacitance | 60 nF–60 mF |
| Frequency | 10 Hz–60 MHz |
| Temperature | −40 to 1000 °C (supplied probe −20 to 300 °C) |
| Other | Continuity, diode test |
| Signal generator | 13 waveforms, 0–50 kHz, amplitude 0–3 V, adjustable duty cycle for square and sawtooth |
| Safety marking | Marked CAT III 1000V / CAT IV 600V on the front panel |
| Fuse | User-replaceable 10 A fuse |
| Display | 3.5-inch IPS touchscreen |
| Battery | Built-in 3000mAh rechargeable lithium battery, 10+ hours, USB Type-C charging |
| USB | Data export and firmware update |
| In the box | Main unit, user manual, P6100 probe, alligator clips, test leads, test lead accessories, BNC adapter, fuse, storage bag |
FAQ
How do I use the TMP610S as an oscilloscope?
Connect the supplied P6100 probe to the BNC input, set the probe and the scope to the same ratio (1:1 or 10:1), clip the earth lead to circuit ground, then touch the probe tip to the test point. Use auto trigger first, then adjust V/div (10 mV–10 V) and timebase (50 ns–20 s) until the waveform is stable.
What are the oscilloscope specifications?
1 channel, 10 MHz bandwidth, 48 MSa/s real-time sampling, 1 MΩ input and AC/DC coupling.
What can the multimeter measure?
DC voltage to 1000 V, AC voltage to 750 V, current from 600 µA to 10 A, resistance, capacitance, frequency, temperature, continuity and diodes, with 60000 count and True RMS.
How is it powered?
A built-in 3000mAh rechargeable lithium battery gives 10+ hours and charges over USB Type-C.
Is delivery free?
Yes, delivery is free. Prices are incl. VAT.
