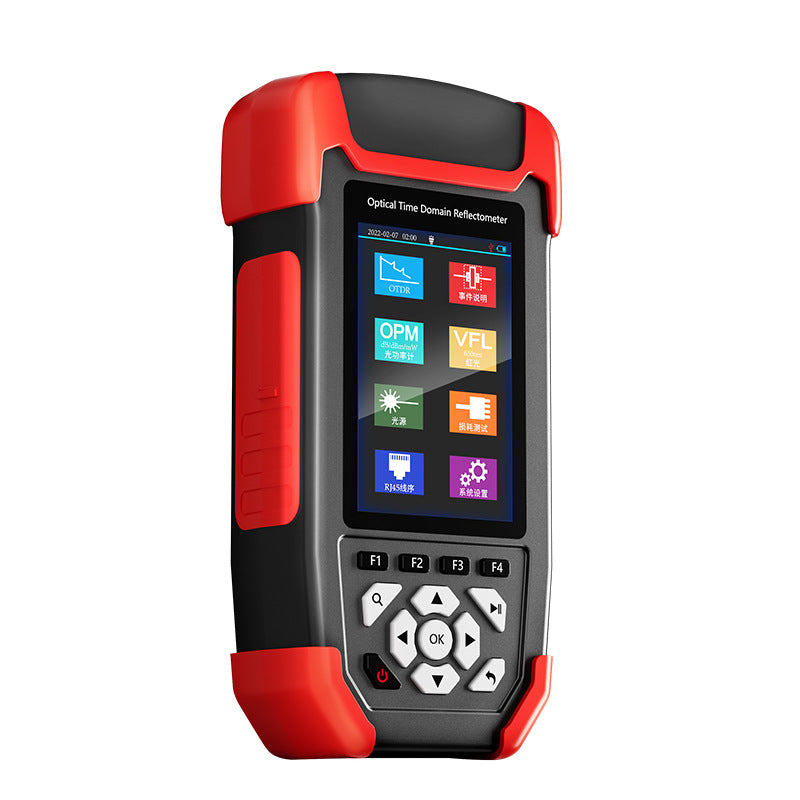

Noyafa NF-981 Handheld OTDR Fibre Tester, 1310/1550 nm, 60 km, with OPM, VFL & RJ45

The Noyafa NF-981 is a handheld OTDR for locating faults, breaks and splices on single-mode fibre up to 60 km. It runs one-touch automatic tests with an event map, and also works as an optical power meter, light source, visual fault locator and RJ45 cable tester.

Key Specifications

• Model: NF-981
• Wavelength: 1310 / 1550 nm
• Dynamic range: 24 / 22 dB
• Fibre type: G.652 single-mode
• Event dead zone: 10 m
• Attenuation dead zone: 15 m
• Test range: 10 m–60 km
• Pulse width: 5 ns–10 μs
• Loss accuracy: ±0.2 dB/dB
• Reflectance accuracy: ±3 dB
• Sampling points: 16k–128k
• Storage: 600+ internal, TF card
• File format: SOR
• Laser safety: Class II
• Connector: FC/PC or FC/APC (SC, ST interchangeable)
• Display: 3.5-inch colour LCD
• Battery: Rechargeable, about 12 hours

Key Features

• One-touch automatic test with event map
• Optical power meter (OPM) and stable light source
• Visual fault locator (VFL)
• RJ45 cable length and wire map test with remote unit
• Built-in flashlight and SOR file export

Ideal For

• FTTH and fibre network installation
• Telecom and CCTV fibre maintenance
• Locating breaks, bends and bad splices

In the Box

• NF-981 OTDR
• RJ45 remote unit
• Charger and USB cable
• SC adapter
• Carry bag
• User manual

Important Notes

• Do not test live (lit) fibre with the OTDR port
• Never look into the laser or fibre end
• Clean connectors before testing
