NOYAFA NF-802 Wire Tracer & Network Cable Tester, Port Flash
$114.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

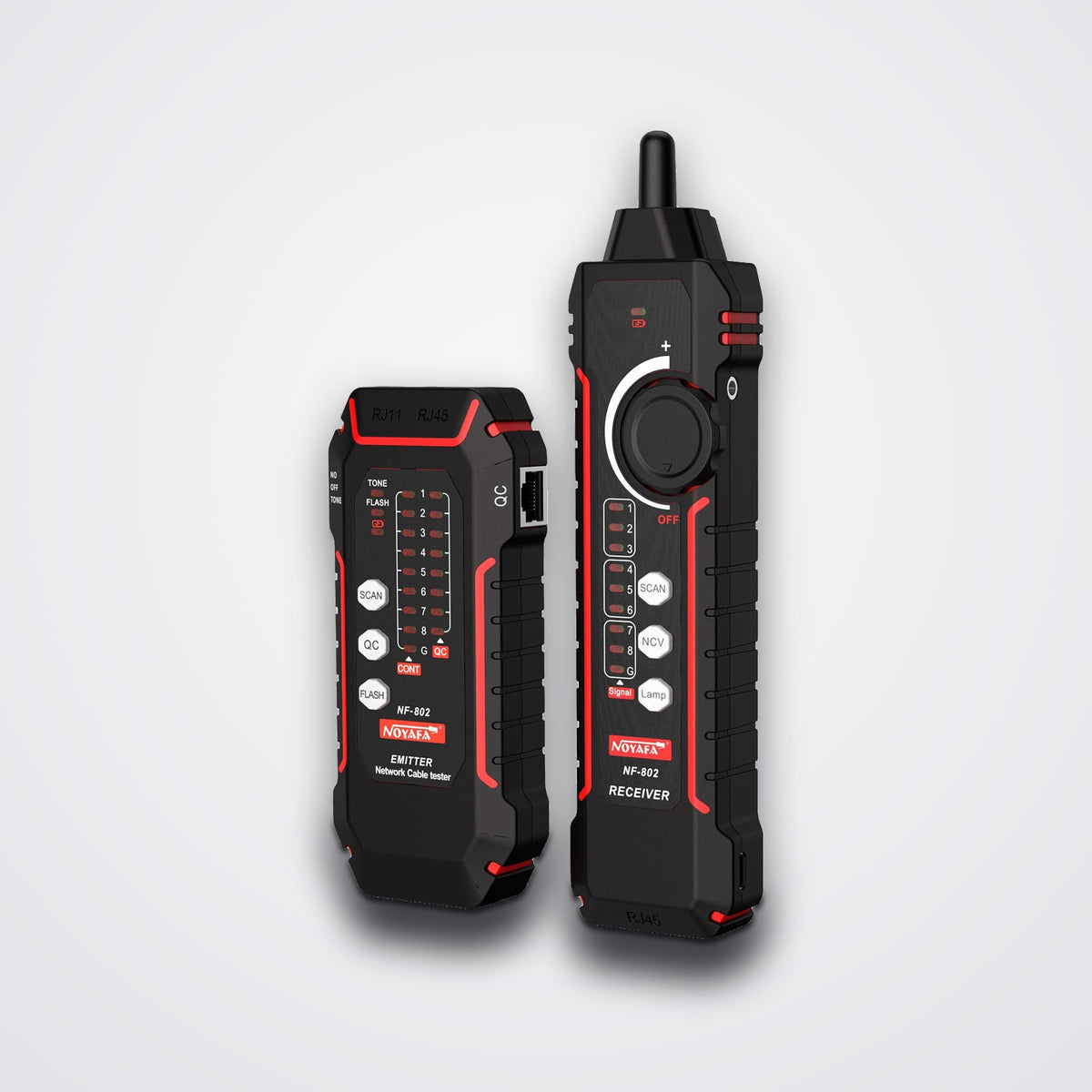

The NOYAFA NF-802 is an all-in-one network cable tester that combines digital-signal cable tracing, RJ45 wire mapping, crimp (QC) checking and port flash. It suits network installers, IT support teams and electricians maintaining LAN and telephone cabling.
Technical specifications
| Specification | Value |
| Model | NF-802 |
| RJ45 wire mapping | Yes: pass / open / short / cross, works in scan mode |
| Crimp (QC) test | Yes |
| Cable tracing | RJ45 and RJ11 (digital signal, anti-interference) |
| Port flash (hub blink) | Yes |
| Telephone line analysis | Polarity, on-hook/off-hook and ringing |
| NCV | Non-contact live-voltage detection |
| Indicators | 9 wiremap LEDs (G = shield) |
| Power | Rechargeable battery, USB Type-C charging (transmitter and receiver) |
| Extras | LED light |
| Not supported | RJ11/BNC/USB wire mapping; BNC/USB tracing |
| Labels | English on the unit |
FAQ
What does the NOYAFA NF-802 do?
It traces RJ45 and RJ11 cables, maps RJ45 wiring, checks crimps, flashes switch port lights and analyses telephone lines.
What is port flash?
It makes the link light on a router, hub or switch port blink so you can find which port a cable is connected to.
Can it detect live wires?
Yes, it has built-in non-contact voltage (NCV) detection.
Can it map BNC or USB cables?
No, wire mapping is for RJ45 only.
Is delivery free?
Yes, delivery is free and Prices include UK VAT.
