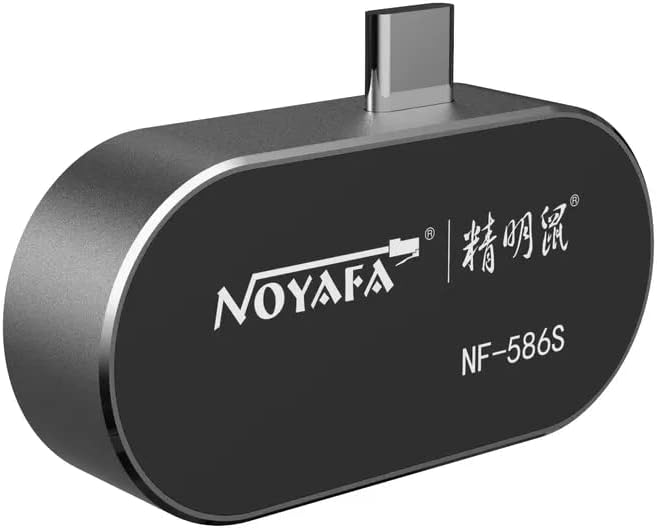

NOYAFA NF-586S Phone Type-C Thermal Camera
$478.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The NOYAFA NF-586S is a phone Type-C thermal camera that turns a compatible Android smartphone into a mobile thermal imager: IR resolution 256×192, plug-to-use via USB-C, English App UI, no separate charger. This listing is the NF-586S only—not NF-583, NF-583S, NF-521, or NF-562S.
Specifications
- Model: NF-586S
- Brand: NOYAFA
- Type: Phone / Type-C mobile thermal camera (256×192)
- IR resolution: 256 × 192
- Spectral range: 8–14 µm
- Frame rate: 25 Hz
- NETD: <50 mK @ 25 °C
- FOV: 56° × 42°
- Lens: 3.2 mm
- Temperature range: −15 °C to 600 °C
- Accuracy: ±2 °C or ±2% of reading (whichever is greater)
- Interface: USB Type-C; plug to use (Android OTG)
- Power: Powered by the phone; no separate battery charge
- App: Photo / video; six colour palettes; English UI
- Module size / net weight: 34 × 26.5 × 15 mm / approx. 19 g
- Ship weight (gate): Approx. 0.50 kg
Model note: Do not confuse with NF-583 / NF-583S (lower IR resolution), NF-521, or NF-562S. Photos and specs on this page are for NF-586S only.
Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
FAQ
What is the NF-586S?
It is a NOYAFA phone Type-C thermal camera (mobile thermal imager) with 256×192 IR resolution for Android devices via USB-C and an English App UI.
Is this NF-586S or NF-583S / NF-562S / NF-521?
This listing is NOYAFA NF-586S only (SKU EKO-NF586S). It is not NF-583, NF-583S, NF-521, or NF-562S. Do not use those models’ photos or prices on this page.
What is the IR resolution?
IR detector resolution is 256 × 192 (HIGH RESOLUTION on the English marketing graphics). Frame rate 25 Hz; FOV 56° × 42° (manufacturer specs).
How do I use it with a phone (Type-C)?
Plug the Type-C module into a compatible Android phone (OTG enabled), install/open the App, and start thermal imaging—plug to use; the module is phone-powered.
Are clean English product photos available?
Yes. Clean English shots (clean_en_1 as main; clean_en_2→5 as gallery: App EN, HIGH RESOLUTION, Plug To Use / Type-C). All raw_* captures—especially raw_4 / raw_9 / raw_10 (wrong model NF-583S)—are banned from media.
Is UK delivery free?
Free UK delivery. Dispatched in 1–2 working days, delivered in 5–7 working days. Price incl. VAT, VAT invoices available.
