Home / Electrical & Network Testers / FNIRSI FNB58 USB C Tester Power Meter, 140W PD Fast Charge

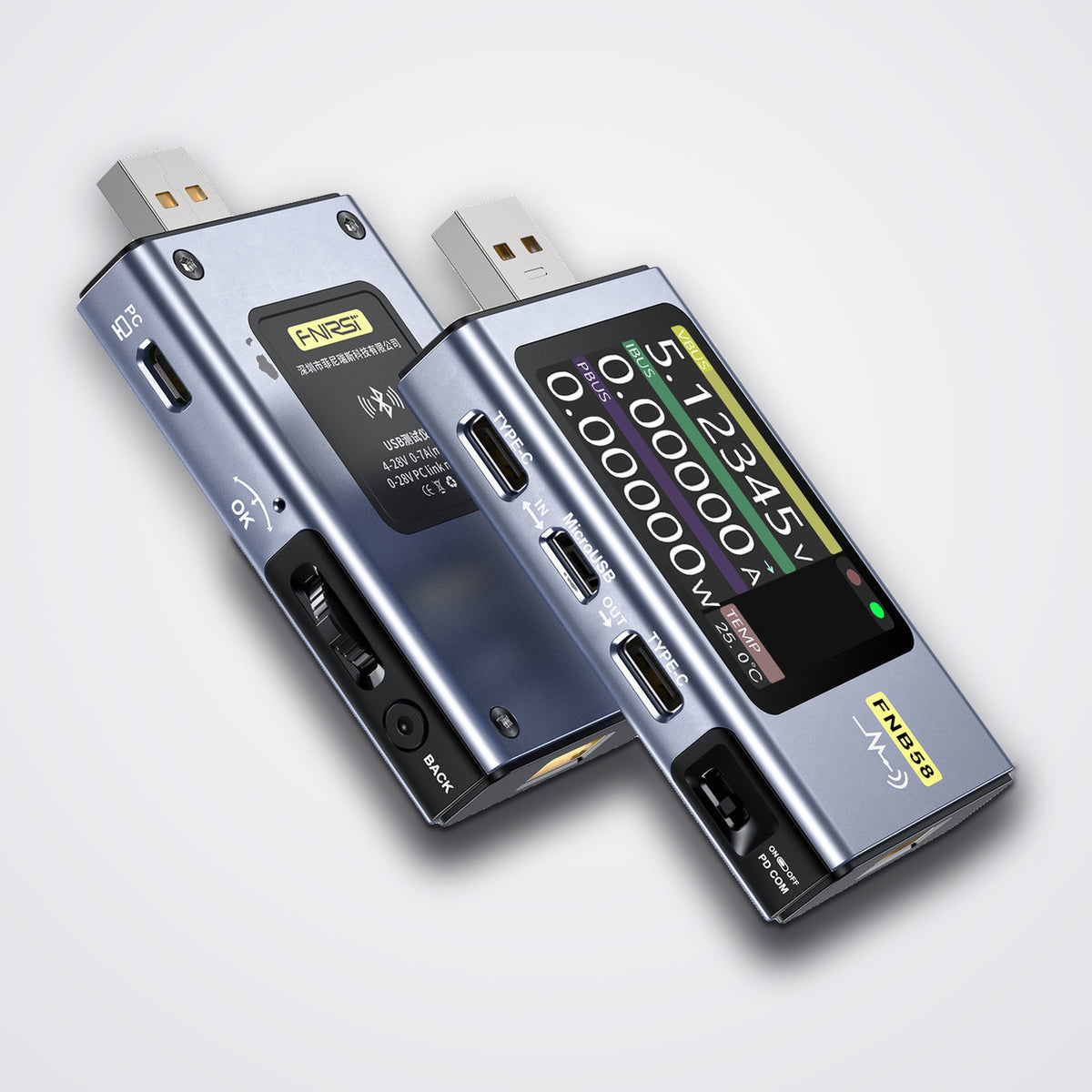

FNIRSI FNB58 USB C Tester Power Meter, 140W PD Fast Charge
$102.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
Dispatched within 1–2 working days. Delivered in 5–7 working days after dispatch.
The FNIRSI FNB58 is a USB C tester and power meter for checking chargers, cables, power banks and USB-powered devices. A 2.0-inch full-colour TFT display shows voltage, current, power, D+/D- voltage, capacity and energy, and the meter integrates USB-A, Micro-USB and Type-C ports. It uses an external 16-bit ADC and a dedicated PD protocol chip, and can detect and trigger fast-charge protocols including QC2.0/3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP and Super VOOC. Extra tools include cable resistance measurement, E-Marker cable chip reading, low-speed waveform recording and high-speed ripple capture up to 4 MSa/s. This listing is the standard (non-Bluetooth) version.
Specifications
- Monitored voltage: 4–28 V
- Monitored current: 0–7 A
- Monitored power: 0–140 W
- D+/D- voltage: 0–3.3 V
- Capacity: 0–9999.99 Ah
- Energy: 0–9999.99 Wh
- Cable resistance: 0–9999.9 Ω
- Load equivalent resistance: 0–9999.9 Ω
- Recording time: Up to 99 days 23:59:59
- Display: 2.0-inch TFT colour LCD
- Ports: USB-A, Micro-USB, Type-C
- ADC: External 16-bit
- Fast-charge protocols: QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0; MTK-PE detection
- Ripple sampling: Up to 4 MSa/s (waveform 2–100 sps)
- Extra functions: E-Marker cable reading, DASH cable reading, cable resistance, onboard temperature, PD monitor
- Manual: No paper manual; download from FNIRSI website
FAQ
Which fast-charge protocols does the FNB58 support?
QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP and Super VOOC 1.0/2.0, with MTK-PE detection.
What is the maximum power it can measure?
Up to 140 W, with 4–28 V and 0–7 A monitoring ranges.
Can it read USB-C cable E-Marker chips?
Yes, it reads E-Marker cable chips and measures cable resistance.
Does this version have Bluetooth?
No, this is the standard version without Bluetooth.
How long does delivery take?
Dispatched within 1–2 working days. Delivered in 5–7 working days after dispatch. Delivery is free and taxes are included.
