Digital Tachometer RPM Meter with Hall Sensor for Motorcycle & Lawnmower, 4-Digit LED
$43.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

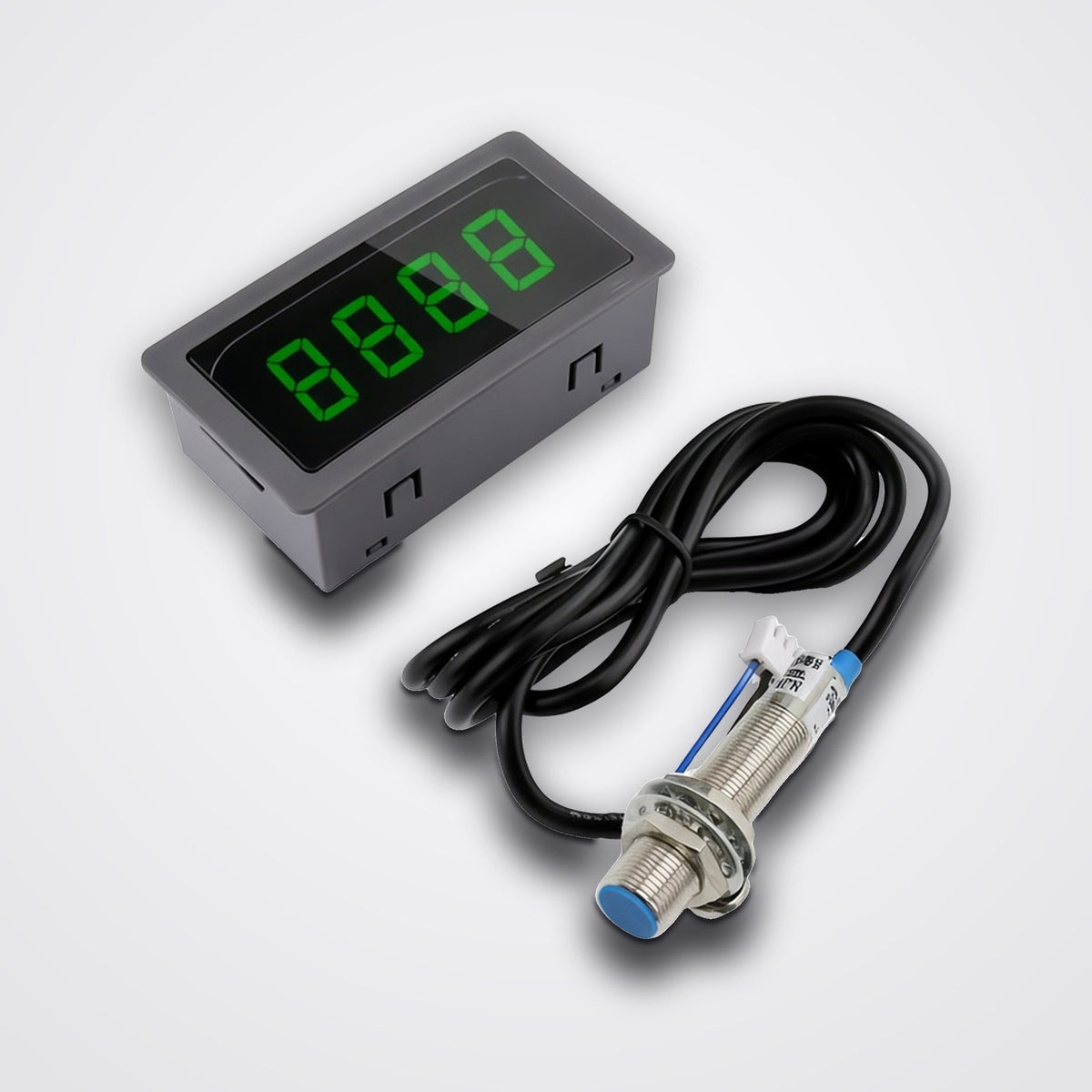

This 4-digit LED digital tachometer RPM meter uses a Hall sensor and magnet to measure rotational speed, giving a continuous panel readout of motor or shaft speed from 10 to 9999 RPM. It suits makers, engineers and hobbyists fitting a speed display to lathes, drills, fans, motors and other rotating machinery. Available with a green or blue LED display.
Technical specifications
| Specification | Value |
| Display | 4-digit LED (green or blue) |
| Sensor | Hall sensor with magnet |
| Measuring range | 10 - 9999 RPM |
| Accuracy | ±0.1% |
| Supply voltage | DC 8-24V |
| Current | 40mA |
| Dimensions | 79 x 43 x 26 mm |
| Weight | approx. 80g |
| In the box | RPM meter, Hall sensor, magnet |
FAQ
What does this digital tachometer measure?
It measures and displays the rotational speed (RPM) of a motor, shaft or other rotating part on a 4-digit LED display.
How does the Hall sensor tachometer work?
A magnet is fixed to the rotating part and the Hall sensor detects each pass, so speed is measured without contact.
What RPM range does this tachometer measure?
It measures rotational speed from 10 to 9999 RPM.
What power supply does the RPM meter need?
It runs from a DC 8-24V supply and draws about 40mA.
