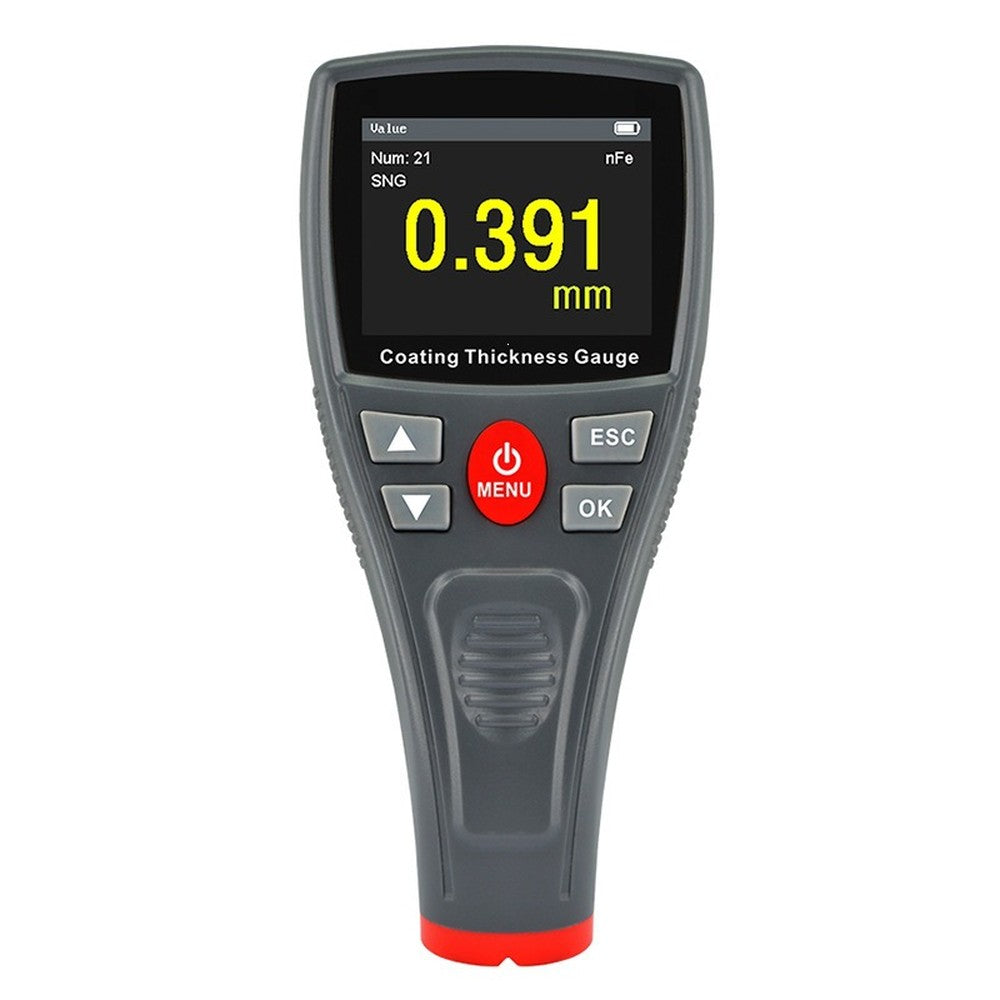

Wintact WT2110 Paint Coating Thickness Gauge, 0–1500 μm, Fe/NFe
$175.00
Free delivery · incl. VAT
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details
The Wintact WT2110 measures paint and coating thickness on steel and non-ferrous metals from 0 to 1500 μm, with automatic substrate detection, a rotating colour screen, statistics and rechargeable batteries.
Key Specifications
- Model: WT2110
- Measuring range: 0–1500 μm (0–59 mil / 0–1.5 mm)
- Resolution: 0.1 μm below 100 μm; 1 μm from 100 μm
- Accuracy: ±5 μm up to 150 μm; ±(3%H + 1 μm) above
- Substrate: Ferrous (Fe) and non-ferrous (NFe), auto detection
- Modes: Single and continuous
- Memory: 1500 readings in 100 groups
- Display: Colour, 360° auto-rotating, backlit
- Power: 3 × Ni-MH rechargeable, USB charging
Key Features
- Magnetic induction and eddy-current probe
- Automatic Fe/NFe detection
- High/low limit alarms
- Statistics and bar-graph view
- Six selectable screen colours
Ideal For
- Used-car paint inspection
- Body shop and refinishing work
- Industrial coating checks on metal
In the Box
- WT2110 gauge
- Calibration plates and foils
- USB cable
- 3 × Ni-MH rechargeable batteries
- Carry case
- User manual
Important Notes
- Not for coatings on non-metal substrates
- Hold the probe square to a clean surface and calibrate for the substrate
Delivery
- Free UK delivery
- Dispatched within 1–2 working days
- Delivered in 5–7 working days
- All prices include VAT
Technical specifications
| Specification | Value |
| Model | WT2110 |
| Measuring range | 0–1500 μm (0–59 mil / 0–1.5 mm) |
| Resolution | 0.1 μm below 100 μm; 1 μm from 100 μm |
| Accuracy | ±5 μm up to 150 μm; ±(3%H + 1 μm) above |
| Substrate | Ferrous (Fe) and non-ferrous (NFe), auto detection |
| Modes | Single and continuous |
| Memory | 1500 readings in 100 groups |
| Display | Colour, 360° auto-rotating, backlit |
| Power | 3 × Ni-MH rechargeable, USB charging |
FAQ
What does the WT2110 measure?
Paint and non-magnetic coatings on steel, and insulating coatings on non-ferrous metals such as aluminium, from 0 to 1500 μm.
Does it detect the substrate automatically?
Yes, it switches between Fe and NFe automatically.
How accurate is it?
±5 μm up to 150 μm and ±(3%H + 1 μm) above.
Is it rechargeable?
Yes, it runs on three Ni-MH batteries charged over USB.
Is delivery free?
Yes. UK delivery is free, dispatched in 1–2 working days.
