Home / Car Diagnostic Tools / V519 OBD2 Car Diagnostic Scanner, 2.8" Colour Screen

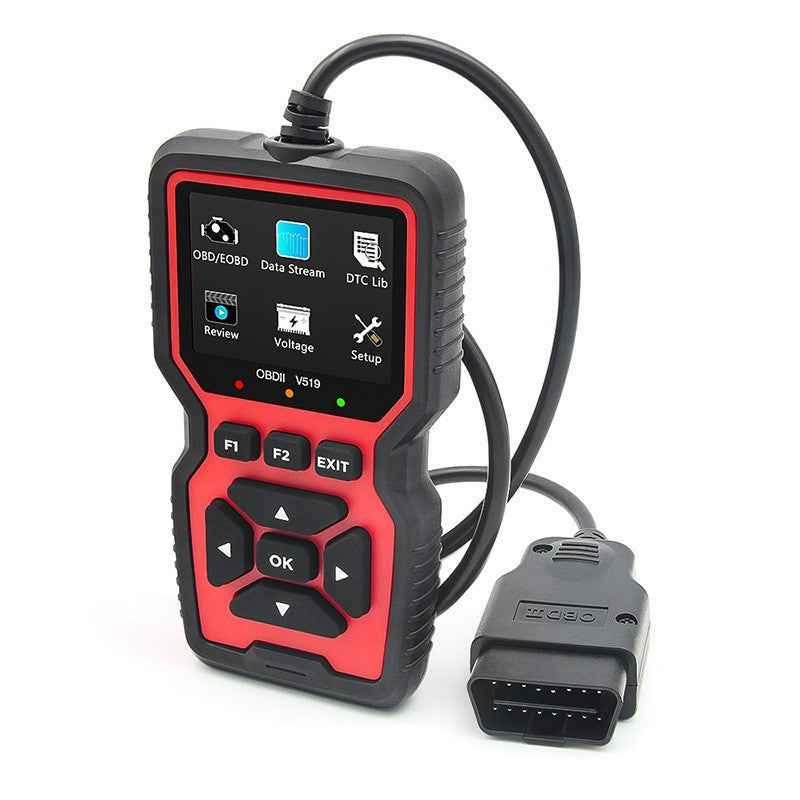

V519 OBD2 car diagnostic scanner

V519 OBD2 Car Diagnostic Scanner, 2.8" Colour Screen

$61.00
Free delivery · incl. VAT
Quantity
or
VAT invoices
30-day returns
Secure payment
UK consumer rights apply
Product details

The V519 is a plug-and-play OBD2/EOBD code reader with a 2.8-inch colour screen. Plug it into your car's OBD port to read and clear engine fault codes, check I/M readiness, view freeze frame and live data, and read battery voltage. No app or phone needed, and the menus are in English. Free delivery.

Specifications

  • Model: V519
  • Protocols: 9 standard OBD2/EOBD protocols: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP (5-baud and fast init), ISO 15765-4 CAN (11/29-bit, 250/500 kbaud)
  • Functions: Read and clear engine fault codes, freeze frame, I/M readiness, vehicle information (VIN), live data stream, O2 sensor test, Mode 6 and Mode 8, battery voltage, playback
  • Fault code library: Built-in DTC lookup, 35,901 codes
  • Display: 2.8-inch colour LCD, 240 × 320
  • Languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese
  • Power: From the vehicle's OBD2 port (no batteries needed)
  • Operating current: 48–72 mA
  • Operating temperature: -20 to 65 °C
  • Storage temperature: -30 to 70 °C
  • Connector: Standard 16-pin OBD2, attached cable
  • Size: 155 × 87 × 24 mm
  • Weight: 246 g
  • In the box: V519 scanner, user manual

Dispatched within 1–2 working days. Delivered in 5–7 working days after dispatch.

Technical specifications

SpecificationValue
ModelV519
Protocols9 standard OBD2/EOBD protocols: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP (5-baud and fast init), ISO 15765-4 CAN (11/29-bit, 250/500 kbaud)
FunctionsRead and clear engine fault codes, freeze frame, I/M readiness, vehicle information (VIN), live data stream, O2 sensor test, Mode 6 and Mode 8, battery voltage, playback
Fault code libraryBuilt-in DTC lookup, 35,901 codes
Display2.8-inch colour LCD, 240 × 320
LanguagesEnglish, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese
PowerFrom the vehicle's OBD2 port (no batteries needed)
Operating current48–72 mA
Operating temperature-20 to 65 °C
Storage temperature-30 to 70 °C
ConnectorStandard 16-pin OBD2, attached cable
Size155 × 87 × 24 mm
Weight246 g
In the boxV519 scanner, user manual
FAQ

Will the V519 work on my UK car?

It works with cars that use the standard OBD2/EOBD diagnostic system. As a general rule, EOBD is fitted to petrol cars from 2001 and diesel cars from 2004 sold in the UK and EU. Look for the 16-pin OBD port, usually under the dashboard near the steering column.

What can it do, and what can't it do?

It reads and clears engine fault codes (turning off the check engine light once the fault is fixed), and shows freeze frame, I/M readiness, live data and battery voltage. It reads the generic OBD2/EOBD engine and emissions data only. It does not read ABS, airbag (SRS), transmission or other manufacturer-specific systems, and it cannot do coding, servicing resets or key programming.

Does it need batteries, an app or a phone?

No. It is powered by the car's OBD2 port and has its own colour screen, so you just plug it in with the ignition on.

Is the screen in English?

Yes. The menus are in English, and you can switch to nine other languages including German, French and Spanish.

Is delivery free?

Yes, delivery is free.
